CX380C Case excavator specs & Dimensions (2021 - 2026)

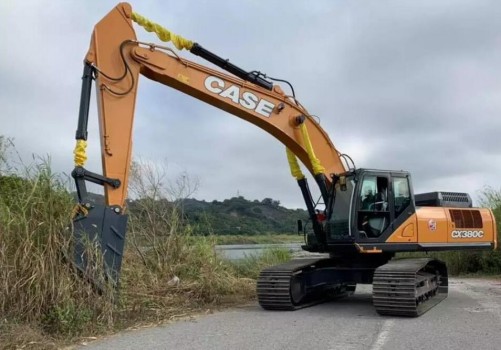

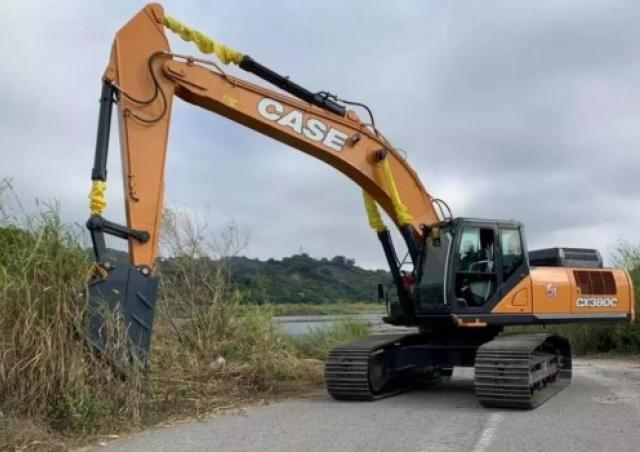

Case CX380C is a Crawler Excavator manufactured since 2021. It has a weight of 36.7 tons and a track width of 600 mm. The transpor…

Case CX380C is a Crawler Excavator manufactured since 2021. It has a weight of 36.7 tons and a track width of 600 mm. The transport dimensions are 11.35 meters in length, 3.2 meters in width, and 3.14 meters in height. The machine offers a tear-out force of 252 kN, a dredging depth of 6.3 meters, and a maximum horizontal reach of 9.99 meters. The bucket capacity is 1.6 cubic meters.

Crawler Excavators Case CX380C

Technical specs - CX380C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.7 t
Transport length
11.35 m
Transport width
3.2 m
Transport height
3.14 m
Bucket capacity
1.6 m³
Track width
600 mm
Max. Reach horizontal
9.99 m
Dredging depth
6.3 m
Tear-out force
252 kN
Model series
C
Engine manuf.
Isuzu
Engine type
GH-6HK1X
Engine power
200 kW
Displacement
7.79 l
Revolutions at max torque
1500 rpm
Max. torque
1020 Nm
No. of cylinders
6
Cylinder bore x stroke
115x125 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX380C FAQ

When was the Case CX380C manufactured?

The Case CX380C was first produced in 2021.

How much does the Case CX380C weigh?

The Case CX380C weighs 36.7 tons.

What are the transport dimensions of the Case CX380C crawler excavator?

The Case CX380C crawler excavator has a transport length of 11.35 meters, a transport width of 3.2 meters, and a transport height of 3.14 meters.

What is the track width of the Case CX380C's undercarriage?

The Case CX380C has a track width of 600 mm.

What are the excavation performance specifications of the Case CX380C?

The Case CX380C has a dredging depth of 6.3 meters and a maximum horizontal reach of 9.99 meters.

What is the tear-out force of the Case CX380C?

The Case CX380C has a tear-out force of 252 kN.

What is the bucket capacity of the Case CX380C crawler excavator?

The Case CX380C crawler excavator has a bucket capacity of 1.6 cubic meters.

How much is a Case CX380C Crawler excavator (2021u20132025) worth?

The residual value of the Case CX380C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX380C overview

Engine

High efficiency

Up to 8% more fuel efficiency. Constant consumption monitoring with the 5 Energy Saving Controls, Isuzu engine and the new ECO gauge function. The C series models are powered by Isuzu engines, designed to boost machine performances and optimize fuel economy. Fuel consumption can be constantly monitored by the operator throughout the new ECO gauge function, which displays in real time the energy saving level utilized.


Hydraulic and electronic system

Fast cycles

Higher breakout force. Continuous operations. Up to 10% higher digging capability with H/SP modes and Auto Power boost. The advanced hydraulic system offers higher breakout forces, improved swing speeds and greater swing torque, resulting in faster cycle times and a 5% increase in productivity. The power boost function is automatically engaged, and the electronic management of speed and power lowers fuel consumption, offering considerable productivity benefits in terms of outputs.


High versatility

3 power modes to match any customer need:AUTO: for normal digging, grading, lifting and precision work.HEAVY: for heavy operations always granting the best balance between productivity and fuel economy.SUPER POWER: extra speed and power for the most demanding jobs that require maximum productivity. Operators can store up to 10 auxiliary hydraulic flow and pressure settings to easily switch among different attachments with no need of any mechanical adjustment.


Upper Structure

High reliability

Robust design. Increased durability. Lower cost of ownership with the CASE top manufacturing quality and heavy duty arm/boom. HD Boom and arm structure has been designed to reinforce the thickness rate of the most stressed areas, to increase productivity, the cycle times and durability of components. Accurate, simple and robust design for high durability.


Cab

Comfort and safety

Spacious and safe cab. Low noise and vibrations. Ergonomic workstation. Real time parameters monitoring with the newly designed cab, fully adjustable seat/joysticks and brand new LED cluster.


Outstanding visibility

Wider glazed surface with single piece side window. New 7” LED cluster for a more secure and safe working environment and to constant monitor the main machine parameters.


Equipment

Low total cost of ownership

Longer service intervals. Reduced downtimes. Fast, easy and safe maintenance operations with the EMS bushings, high quality components and service points accessible from the ground. The Extended Maintenance Bushings (EMS) provide longer greasing intervals, reducing daily and weekly maintenance for the operator. All filters and regular check points are grouped and easily accessible from the ground. Radiator and cooler are mounted side by side for more efficient cooling and easy access for cleaning. Optional refueling pump with auto cut off reduces downtime for regular fills.
