CX370D Case excavator specs & Dimensions (2019 - 2026)

Case CX370D is a crawler excavator manufactured since 2019, with a weight of 37.9 tons. It features a track width of 600 mm, a tra…

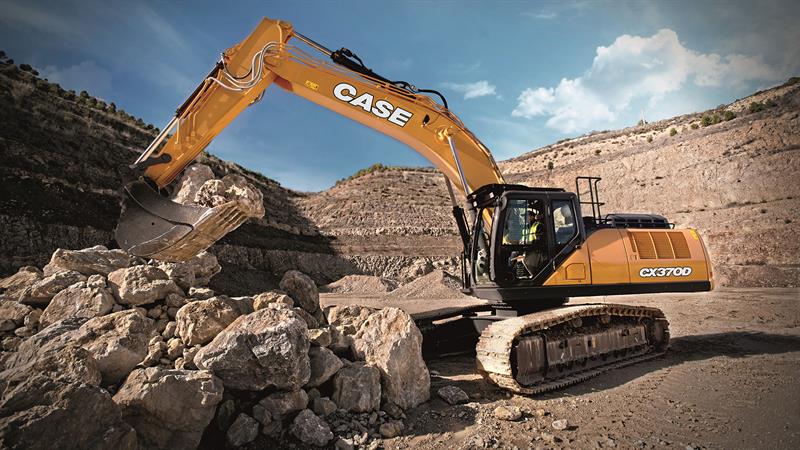

Case CX370D is a crawler excavator manufactured since 2019, with a weight of 37.9 tons. It features a track width of 600 mm, a transport length of 11.17 meters, a transport width of 2.99 meters, and a transport height of 3.47 meters. The machine has a tear-out force of 229.7 kN, a dredging depth of 7.34 meters, and a maximum horizontal reach of 10.98 meters. The bucket capacity is 1.4 cubic meters. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators Case CX370D
Crawler Excavators Case CX370D
Crawler Excavators Case CX370D
Crawler Excavators Case CX370D
Crawler Excavators Case CX370D
Crawler Excavators Case CX370D

Technical specs - CX370D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37.9 t
Transport length
11.17 m
Transport width
2.99 m
Transport height
3.47 m
Bucket capacity
1.4 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.98 m
Dredging depth
7.34 m
Tear-out force
229.7 kN
Model series
D
Engine manuf.
Isuzu
Engine type
AQ 6 HK 1 X
Engine power
200 kW
Displacement
7.79 l
Revolutions at max torque
1500 rpm
Max. torque
988 Nm
No. of cylinders
6
Cylinder bore x stroke
115x125 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX370D FAQ

When was the Case CX370D manufactured?

The Case CX370D was first produced in 2019.

How much does the Case CX370D weigh?

The Case CX370D weighs 37.9 tons.

What are the transport dimensions of the Case CX370D crawler excavator?

The Case CX370D has a transport length of 11.17 meters, a transport width of 2.99 meters, and a transport height of 3.47 meters.

What are the undercarriage specifications of the Case CX370D?

The Case CX370D has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX370D?

The Case CX370D has a dredging depth of 7.34 meters, a maximum horizontal reach of 10.98 meters, and features a monobloc boom.

What is the tear-out force of the Case CX370D?

The Case CX370D has a tear-out force of 229.7 kN. No power rating data is provided for this model.

What is the bucket capacity of the Case CX370D crawler excavator?

The Case CX370D crawler excavator has a bucket capacity of 1.4 cubic meters.
