CX350D Case excavator specs & Dimensions (2019 - 2026)

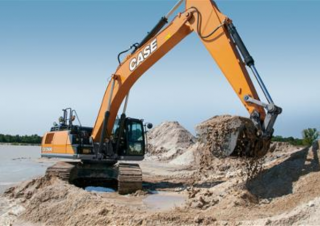

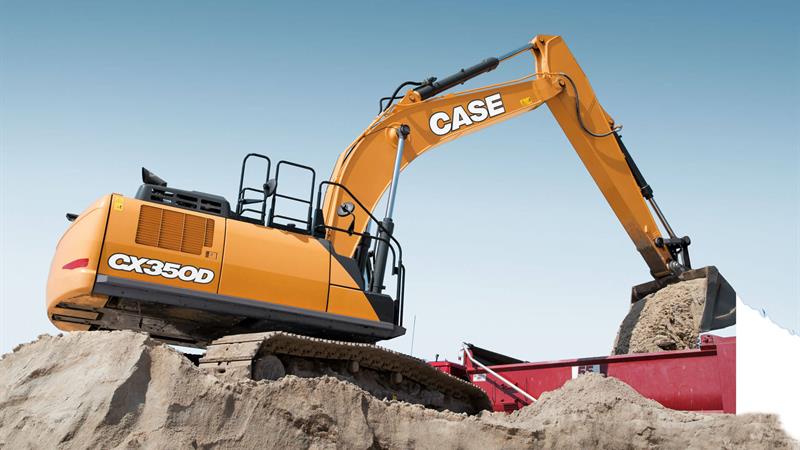

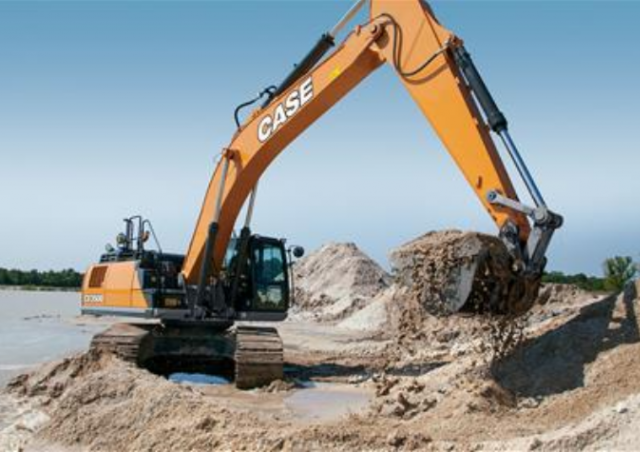

Case CX350D is a crawler excavator manufactured since 2019. It has a weight of 35.7 tons and a track width of 600 mm. The transpor…

Case CX350D is a crawler excavator manufactured since 2019. It has a weight of 35.7 tons and a track width of 600 mm. The transport dimensions are 11.17 meters in length, 2.99 meters in width, and 3.47 meters in height. The machine features a tear-out force of 229.7 kN, a dredging depth of 7.34 meters, and a maximum horizontal reach of 10.98 meters. The bucket capacity is 1.4 cubic meters. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators Case CX350D
Crawler Excavators Case CX350D
Crawler Excavators Case CX350D
Crawler Excavators Case CX350D

Technical specs - CX350D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.7 t
Transport length
11.17 m
Transport width
2.99 m
Transport height
3.47 m
Bucket capacity
1.4 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.98 m
Dredging depth
7.34 m
Tear-out force
229.7 kN
Model series
D
Engine manuf.
Isuzu
Engine type
AQ 6 HK 1 X
Engine power
200 kW
Displacement
7.79 l
Revolutions at max torque
1500 rpm
Max. torque
988 Nm
No. of cylinders
6
Cylinder bore x stroke
115x125 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX350D FAQ

When was the Case CX350D manufactured?

The Case CX350D was first produced in 2019.

How much does the Case CX350D weigh?

The Case CX350D weighs 35.7 tons.

What are the transport dimensions of the Case CX350D crawler excavator?

The Case CX350D has a transport length of 11.17 meters, a transport width of 2.99 meters, and a transport height of 3.47 meters.

What are the undercarriage specifications of the Case CX350D?

The Case CX350D has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX350D crawler excavator?

The Case CX350D has a dredging depth of 7.34 meters, a maximum horizontal reach of 10.98 meters, and is equipped with a monobloc boom.

What are the power ratings of the Case CX350D?

The source data does not provide power ratings for the Case CX350D.

What is the bucket capacity of the Case CX350D excavator?

The Case CX350D excavator has a bucket capacity of 1.4 cubic meters.

How much is a Case CX350D Crawler excavator (2019u20132025) worth?

The residual value of the Case CX350D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
