CX290D SL Case excavator specs & Dimensions (2016 - 2020)

Case CX290D SL is a crawler excavator manufactured since 2016, with a weight of 32.6 tons. It features a track width of 600 mm, a …

Case CX290D SL is a crawler excavator manufactured since 2016, with a weight of 32.6 tons. It features a track width of 600 mm, a transport length of 10.65 meters, a transport width of 3.19 meters, and a transport height of 3.36 meters. The maximum horizontal reach is 12.77 meters. The excavator is equipped with air conditioning, cabin adjustment, material handling capabilities, an overload alert system, and a hydraulic quick hitch.

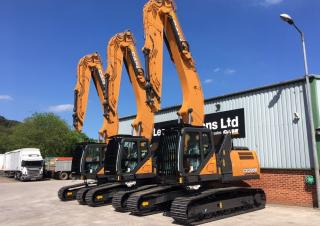

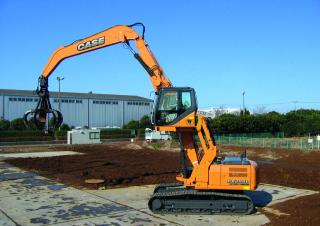

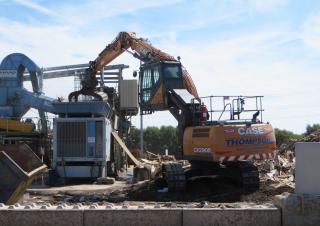

Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL
Crawler Excavators Case CX290D SL

Technical specs - CX290D SL Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32.6 t
Transport length
10.65 m
Transport width
3.19 m
Transport height
3.36 m
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
12.77 m
Model series
D
Engine manuf.
Isuzu
Engine type
AQ 4 HK 1 X
Engine power
140 kW
Displacement
5.193 l
Revolutions at max torque
1800 rpm
Max. torque
676 Nm
No. of cylinders
4
Cylinder bore x stroke
115x125 mm
Emission level
IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX290D SL FAQ

When was the Case CX290D SL manufactured?

The Case CX290D SL was manufactured from 2016 to 2020.

How much does the Case CX290D SL weigh?

The Case CX290D SL weighs 32.6 tons.

What are the transport dimensions of the Case CX290D SL?

The transport dimensions of the Case CX290D SL are 10.65 meters in length, 3.19 meters in width, and 3.36 meters in height.

What are the undercarriage specifications of the Case CX290D SL?

The Case CX290D SL has a standard undercarriage with a track width of 600 mm.

What are the maximum horizontal reach and boom type of the Case CX290D SL?

The Case CX290D SL has a maximum horizontal reach of 12.77 meters and is equipped with a monobloc boom.

How much is a Case CX290D SL Crawler excavator (2016u20132020) worth?

The residual value of the Case CX290D SL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
