CX290D MH Case excavator specs & Dimensions (2016 - 2020)

Case CX290D MH is a crawler excavator manufactured since 2016, with a weight of 32.8 tons and a track width of 600 mm. Its transpo…

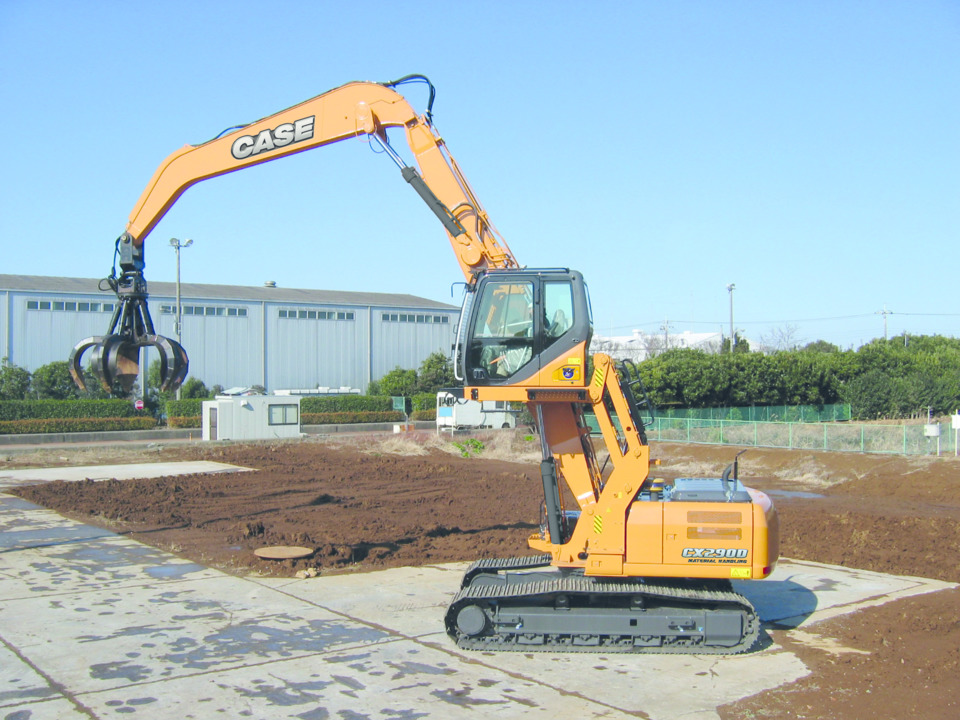

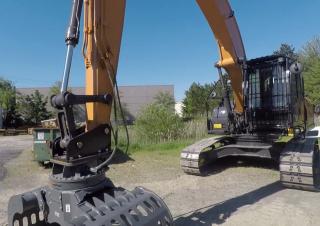

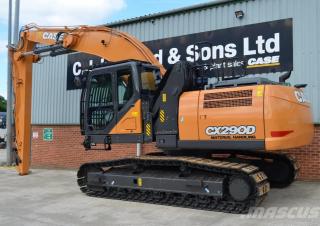

Case CX290D MH is a crawler excavator manufactured since 2016, with a weight of 32.8 tons and a track width of 600 mm. Its transport dimensions are 10.23 meters in length, 3.19 meters in width, and 3.36 meters in height. The maximum horizontal reach is 11.41 meters. This model includes special equipment such as air conditioning, cabin adjustment, material handling capabilities, an overload alert system, and a hydraulic quick hitch.

CX290D MH

Years of manufacture: 2016—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CX290D MH Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 32.8 t

Transport length: 10.23 m

Transport width: 3.19 m

Transport height: 3.36 m

Undercarriage: SL

Track width: 600 mm

Boom: MB

Max. Reach horizontal: 11.41 m

Model series: D

Engine manuf.: Isuzu

Engine type: AQ 4 HK 1 X

Engine power: 140 kW

Displacement: 5.193 l

Revolutions at max torque: 1800 rpm

Max. torque: 676 Nm

No. of cylinders: 4

Cylinder bore x stroke: 115x125 mm

Emission level: IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: Yes
Overload alert: Yes
Material Handling Excavator: Yes
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Case CX290D MH FAQ

When was the Case CX290D MH manufactured?

The Case CX290D MH was manufactured from 2016 to 2020.

How much does the Case CX290D MH crawler excavator weigh?

The Case CX290D MH crawler excavator weighs 32.8 tons.

What are the transport dimensions of the Case CX290D MH crawler excavator?

The Case CX290D MH crawler excavator has a transport length of 10.23 meters, a transport width of 3.19 meters, and a transport height of 3.36 meters.

What are the undercarriage specifications of the Case CX290D MH?

The Case CX290D MH has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX290D MH?

The Case CX290D MH has a maximum horizontal reach of 11.41 meters and is equipped with a monobloc boom.
