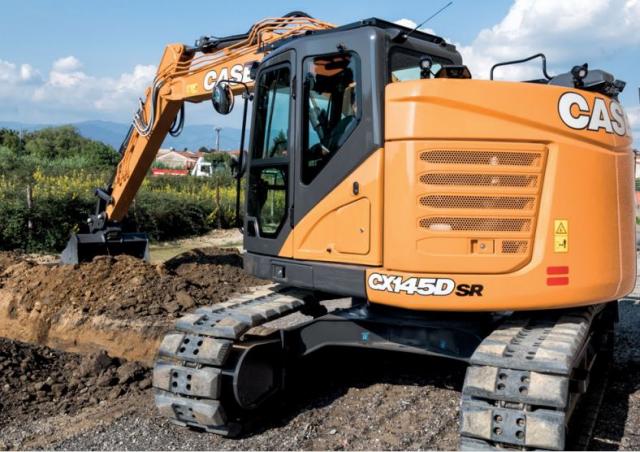

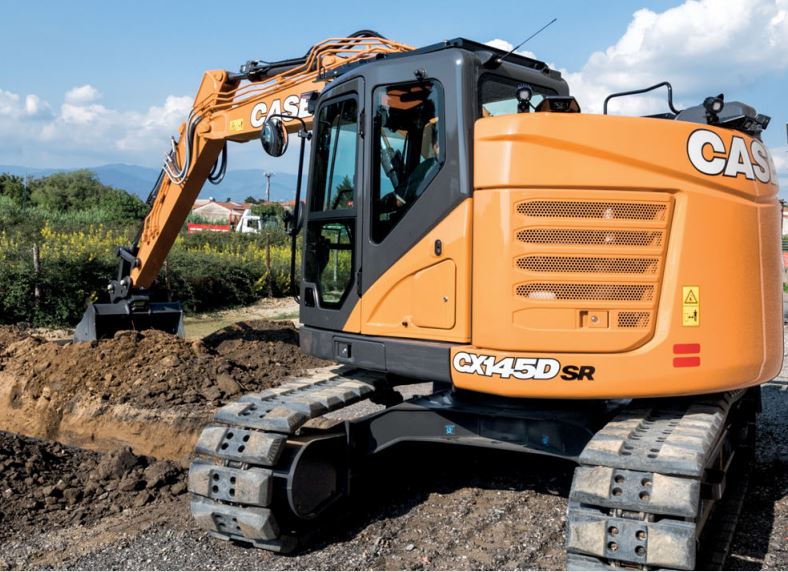

CX145D SR Case excavator specs & Dimensions (2018 - 2020)

Case CX145D SR is a Crawler Excavator manufactured from 2018 to 2020, with a weight of 15.8 t. It features a track width of 600 mm…

Case CX145D SR is a Crawler Excavator manufactured from 2018 to 2020, with a weight of 15.8 t. It features a track width of 600 mm, a transport length of 7.99 m, a transport width of 2.59 m, and a transport height of 2.92 m. The machine has a tear-out force of 90 kN, a dredging depth of 5.31 m, and a maximum horizontal reach of 8.28 m. Special equipment includes air conditioning, a blade, and an overload alert system.

Crawler Excavators Case CX145D SR

Technical specs - CX145D SR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.8 t
Transport length
7.99 m
Transport width
2.59 m
Transport height
2.92 m
Track width
600 mm
Boom
VA
Max. Reach horizontal
8.28 m
Dredging depth
5.31 m
Tear-out force
90 kN
Model series
D
Engine manuf.
Isuzu
Engine type
AM 4 JJ 1 X
Engine power
76.4 kW
Displacement
2.99 l
Revolutions at max torque
1800 rpm
Max. torque
349 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4 x 104.9 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX145D SR FAQ

When was the Case CX145D SR manufactured?

The Case CX145D SR was manufactured from 2018 to 2020.

How much does the Case CX145D SR weigh?

The Case CX145D SR weighs 15.8 tons.

What are the transport dimensions of the Case CX145D SR crawler excavator?

The Case CX145D SR has a transport length of 7.99 meters, a transport width of 2.59 meters, and a transport height of 2.92 meters.

What is the track width of the Case CX145D SR crawler excavator?

The Case CX145D SR crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Case CX145D SR?

The Case CX145D SR has an adjustable boom, a dredging depth of 5.31 meters, and a maximum horizontal reach of 8.28 meters.

What is the tear-out force of the Case CX145D SR?

The Case CX145D SR has a tear-out force of 90 kN.

How much is a Case CX145D SR Crawler excavator (2018u20132020) worth?

The residual value of the Case CX145D SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
