CX 800 B Case excavator specs & Dimensions (2009 - 2014)

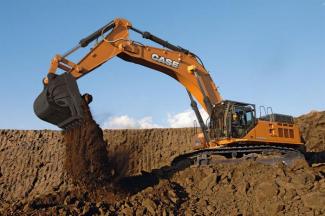

Case CX 800 B is a crawler excavator manufactured from 2009 to 2014. It has a weight of 81 tons and a track width of 750 mm. The t…

Case CX 800 B is a crawler excavator manufactured from 2009 to 2014. It has a weight of 81 tons and a track width of 750 mm. The transport dimensions are 13.92 meters in length, 4.34 meters in width, and 6.2 meters in height. The tear-out force is 214 kN. Special equipment includes air conditioning and a blade.

Crawler Excavators Case CX 800 B

Technical specs - CX 800 B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
81 t
Transport length
13.92 m
Transport width
4.34 m
Transport height
6.2 m
Bucket capacity
4.52 m³
Undercarriage
SL
Track width
750 mm
Boom
MB
Max. Reach horizontal
14.3 m
Dredging depth
10.66 m
Tear-out force
214 kN
Bucket width
2.13 m
Model series
B
Engine manuf.
Isuzu
Engine type
AH 6 WG 1 XYSS
Engine power
397 kW
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Buy full specs

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 800 B FAQ

When was the Case CX 800 B manufactured?

The Case CX 800 B was manufactured from 2009 to 2014.

How much does the Case CX 800 B weigh?

The Case CX 800 B weighs 81 tons.

What are the transport dimensions of the Case CX 800 B crawler excavator?

The transport dimensions of the Case CX 800 B are 13.92 meters in length, 4.34 meters in width, and 6.2 meters in height.

What are the undercarriage specifications of the Case CX 800 B?

The Case CX 800 B has a standard undercarriage with a track width of 750 mm.

What are the excavation performance specifications of the Case CX 800 B?

The Case CX 800 B has a dredging depth of 10.66 meters, a maximum horizontal reach of 14.3 meters, and features a monobloc boom.

What is the tear-out force of the Case CX 800 B?

The Case CX 800 B has a tear-out force of 214 kN.

What are the specifications of the primary work tool bucket on the Case CX 800 B?

The primary work tool bucket of the Case CX 800 B has a capacity of 4.52 cubic meters and a width of 2.13 meters.
