CX 700 B Case excavator specs & Dimensions (2008 - 2014)

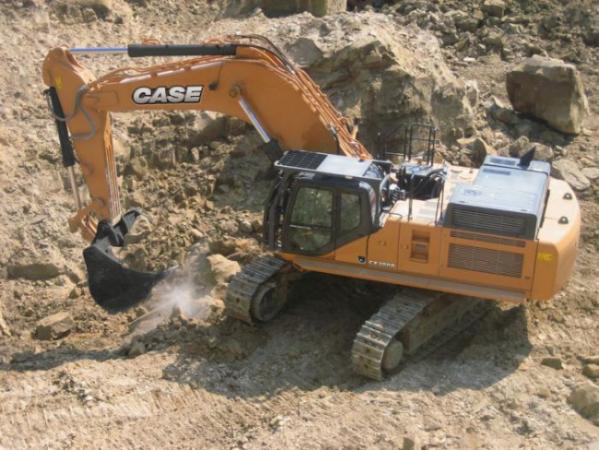

Case CX 700 B is a Crawler Excavator manufactured from 2008 to 2014, with a weight of 69.58 t. It features a track width of 900 mm…

Case CX 700 B is a Crawler Excavator manufactured from 2008 to 2014, with a weight of 69.58 t. It features a track width of 900 mm, a transport length of 13.29 m, a transport width of 3.9 m, and a transport height of 4.3 m. The machine has a tear-out force of 224 kN and is equipped with a blade.

Crawler Excavators Case CX 700 B

Technical specs - CX 700 B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
69.58 t
Transport length
13.29 m
Transport width
3.9 m
Transport height
4.3 m
Bucket capacity
2.9 m³
Track width
900 mm
Max. Reach horizontal
13.16 m
Dredging depth
8.4 m
Tear-out force
224 kN
Model series
B
Engine manuf.
Isuzu
Engine type
AH 6 WG 1 XYSS
Engine power
345 kW
Displacement
15.7 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Buy full specs

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 700 B FAQ

When was the Case CX 700 B manufactured?

The Case CX 700 B was manufactured from 2008 to 2014.

How much does the Case CX 700 B weigh?

The Case CX 700 B weighs 69.58 tons.

What are the transport dimensions of the Case CX 700 B crawler excavator?

The Case CX 700 B has a transport length of 13.29 meters, a transport width of 3.9 meters, and a transport height of 4.3 meters.

What is the track width of the Case CX 700 B crawler excavator?

The Case CX 700 B crawler excavator has a track width of 900 mm.

What are the dredging depth and maximum horizontal reach of the Case CX 700 B crawler excavator?

The Case CX 700 B has a dredging depth of 8.4 meters and a maximum horizontal reach of 13.16 meters.

What is the power rating of the Case CX 700 B?

The source data does not provide power rating information for the Case CX 700 B.

What is the bucket capacity of the Case CX 700 B crawler excavator?

The bucket capacity of the Case CX 700 B is 2.9 cubic meters.

How much is a Case CX 700 B Crawler excavator (2008u20132014) worth?

The residual value of the Case CX 700 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
