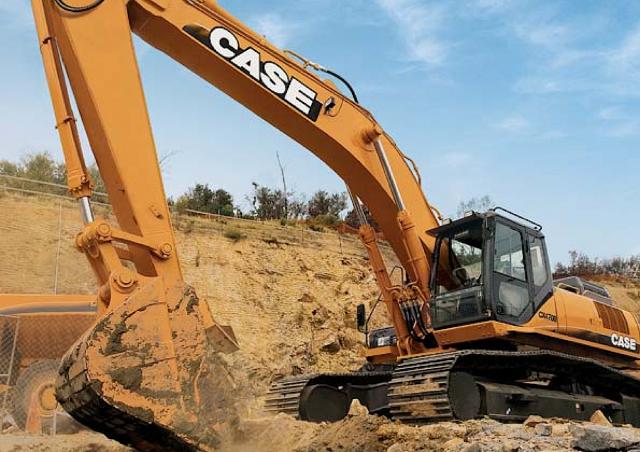

CX 470 B RTC Case excavator specs & Dimensions (2009 - 2012)

Case CX 470 B RTC is a crawler excavator manufactured from 2009 to 2012, with a weight of 48.3 tons. It features a track width of …

Case CX 470 B RTC is a crawler excavator manufactured from 2009 to 2012, with a weight of 48.3 tons. It features a track width of 600 mm, a transport length of 11.95 meters, a transport width of 3.35 meters, and a transport height of 3.27 meters. The excavator is equipped with air conditioning and an overload alert system.

Crawler Excavators Case CX 470 B RTC

Technical specs - CX 470 B RTC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
48.3 t
Transport length
11.95 m
Transport width
3.35 m
Transport height
3.27 m
Bucket capacity
2.15 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Bucket width
1.5 m
Model series
B
Engine manuf.
Isuzu
Engine type
AH 6 UZ 1 XYSS
Engine power
270 kW
Displacement
9.839 l
Revolutions at max torque
1850 rpm

More technical details, like: bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 470 B RTC FAQ

When was the Case CX 470 B RTC manufactured?

The Case CX 470 B RTC was manufactured from 2009 to 2012.

How much does the Case CX 470 B RTC weigh?

The Case CX 470 B RTC weighs 48.3 tons.

What are the transport dimensions of the Case CX 470 B RTC?

The Case CX 470 B RTC has a transport length of 11.95 meters, a transport width of 3.35 meters, and a transport height of 3.27 meters.

What are the undercarriage specifications of the Case CX 470 B RTC?

The Case CX 470 B RTC has a long undercarriage and a track width of 600 mm.

What type of boom does the Case CX 470 B RTC use for excavation?

The Case CX 470 B RTC uses a monobloc boom for excavation.

What are the specifications of the primary work tool on the Case CX 470 B RTC?

The primary work tool of the Case CX 470 B RTC has a bucket capacity of 2.15 cubic meters and a bucket width of 1.5 meters.
