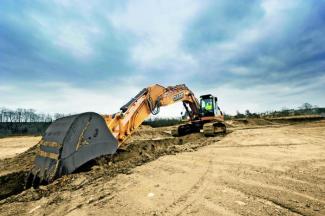

CX 350 C NLC Mono Case excavator specs & Dimensions (2011 - 2014)

Case CX 350 C NLC Mono is a crawler excavator manufactured from 2011 to 2014, with a weight of 34.6 tons. It features a track widt…

Case CX 350 C NLC Mono is a crawler excavator manufactured from 2011 to 2014, with a weight of 34.6 tons. It features a track width of 600 mm, a transport length of 11.14 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters. The excavator is equipped with air conditioning and an overload alert system.

Crawler Excavators Case CX 350 C NLC Mono

Technical specs - CX 350 C NLC Mono Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.6 t
Transport length
11.14 m
Transport width
2.99 m
Transport height
3.2 m
Bucket capacity
1.8 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.67 m
Dredging depth
3.73 m
Tear-out force
228.8 kN
Bucket width
1.5 m
Model series
C
Engine manuf.
Isuzu
Engine type
AL 6 HK 1 X
Engine power
198 kW
Displacement
7.8 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 350 C NLC Mono FAQ

When was the Case CX 350 C NLC Mono manufactured?

The Case CX 350 C NLC Mono was manufactured from 2011 to 2014.

How much does the Case CX 350 C NLC Mono weigh?

The Case CX 350 C NLC Mono weighs 34.6 tons.

What are the transport dimensions of the Case CX 350 C NLC Mono?

The Case CX 350 C NLC Mono has a transport length of 11.14 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters.

What are the undercarriage specifications of the Case CX 350 C NLC Mono?

The Case CX 350 C NLC Mono has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 350 C NLC Mono?

The Case CX 350 C NLC Mono has a dredging depth of 3.73 meters, a maximum horizontal reach of 10.67 meters, and features a monobloc boom.

What are the power ratings of the Case CX 350 C NLC Mono?

The power ratings of the Case CX 350 C NLC Mono are not provided in the available data.

What are the specifications of the primary work tool bucket on the Case CX 350 C NLC Mono?

The primary work tool bucket of the Case CX 350 C NLC Mono has a capacity of 1.8 cubic meters and a width of 1.5 meters.
