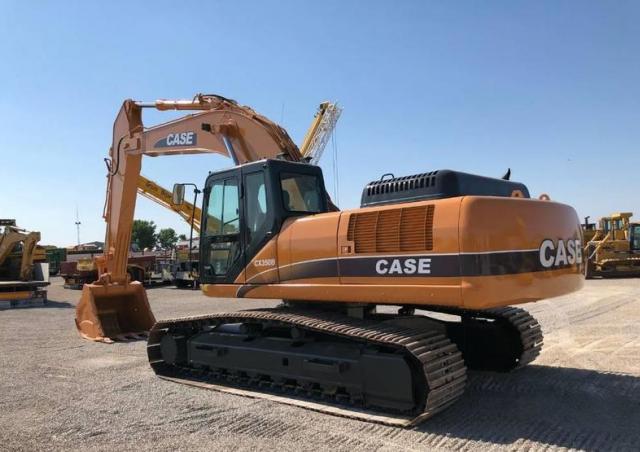

CX 350 Case excavator specs & Dimensions (2006 - 2012)

Case CX 350 is a crawler excavator manufactured from 2006 to 2012, with a weight of 34.2 tons and a track width of 600 mm. It is equipped with air conditioning and an overload alert system.

Crawler Excavators Case CX 350

Technical specs - CX 350 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.2 t
Bucket capacity
1.8 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Engine manuf.
Isuzu
Engine type
AA 6 HKIXQB
Engine power
202 kW
Displacement
7.79 l
Revolutions at max torque
2000 rpm

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, max. torque...

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Case CX 350 FAQ

When was the Case CX 350 manufactured?

The Case CX 350 was manufactured from 2006 to 2012.

How much does the Case CX 350 weigh?

The Case CX 350 weighs 34.2 tons.

What are the undercarriage specifications of the Case CX 350?

The Case CX 350 has a small undercarriage with a track width of 600 mm.

What type of boom does the Case CX 350 have?

The Case CX 350 has a monobloc boom.

What is the bucket capacity of the Case CX 350 crawler excavator?

The bucket capacity of the Case CX 350 is 1.8 cubic meters.

How much is a Case CX 350 Crawler excavator (2006u20132012) worth?

The residual value of the Case CX 350 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
