CX 350 Case excavator specs & Dimensions (2003 - 2005)

Case CX 350 is a crawler excavator manufactured from 2003 to 2005, with a weight of 35.9 tons. It features a track width of 600 mm…

Case CX 350 is a crawler excavator manufactured from 2003 to 2005, with a weight of 35.9 tons. It features a track width of 600 mm, a transport length of 11.1 meters, a transport width of 3.2 meters, and a transport height of 3.13 meters. The machine has a tear-out force of 178 kN and comes equipped with air conditioning and an overload alert system.

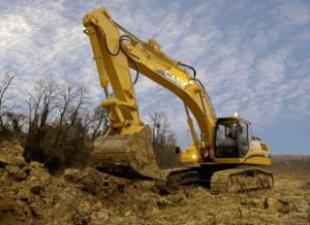

Crawler Excavators Case CX 350

Technical specs - CX 350 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.9 t
Transport length
11.1 m
Transport width
3.2 m
Transport height
3.13 m
Bucket capacity
1.8 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.37 m
Dredging depth
7.34 m
Tear-out force
178 kN
Bucket width
1.5 m
Engine manuf.
Isuzu
Engine type
AA 6 HK 1 XQB
Engine power
185.4 kW
Displacement
7.79 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 350 FAQ

When was the Case CX 350 manufactured?

The Case CX 350 was manufactured from 2003 to 2005.

How much does the Case CX 350 weigh?

The Case CX 350 weighs 35.9 tons.

What are the transport dimensions of the Case CX 350 crawler excavator?

The Case CX 350 has a transport length of 11.1 meters, a transport width of 3.2 meters, and a transport height of 3.13 meters.

What are the undercarriage specifications of the Case CX 350?

The Case CX 350 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Case CX 350 crawler excavator?

The Case CX 350 crawler excavator has a dredging depth of 7.34 meters, a maximum horizontal reach of 10.37 meters, and features a monobloc boom.

What is the tear-out force of the Case CX 350 crawler excavator?

The Case CX 350 crawler excavator has a tear-out force of 178 kN.

What are the bucket specifications of the Case CX 350 crawler excavator?

The Case CX 350 crawler excavator has a bucket capacity of 1.8 cubic meters and a bucket width of 1.5 meters.
