CX 160 C Case excavator specs & Dimensions (2012 - 2016)

Case CX 160 C is a crawler excavator manufactured from 2012 to 2016. It has a weight of 16 tons and a track width of 700 mm. The t…

Case CX 160 C is a crawler excavator manufactured from 2012 to 2016. It has a weight of 16 tons and a track width of 700 mm. The transport dimensions are 8.4 meters in length, 2.69 meters in width, and 2.92 meters in height. The tear-out force is 74 kN. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

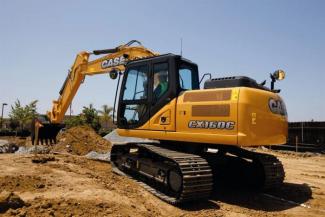

Crawler Excavators Case CX 160 C
Crawler Excavators Case CX 160 C
Crawler Excavators Case CX 160 C
Crawler Excavators Case CX 160 C
Crawler Excavators Case CX 160 C
Crawler Excavators Case CX 160 C

Technical specs - CX 160 C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16 t
Transport length
8.4 m
Transport width
2.69 m
Transport height
2.92 m
Bucket capacity
0.95 m³
Undercarriage
SL
Track width
700 mm
Boom
MB
Max. Reach horizontal
9.35 m
Dredging depth
6.05 m
Tear-out force
74 kN
Bucket width
1.2 m
Model series
C
Engine manuf.
Isuzu
Engine type
AI 4 JJ 1 X
Engine power
79.3 kW
Displacement
3 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 160 C FAQ

When was the Case CX 160 C manufactured?

The Case CX 160 C was manufactured from 2012 to 2016.

How much does the Case CX 160 C weigh?

The Case CX 160 C weighs 16 tons.

What are the transport dimensions of the Case CX 160 C crawler excavator?

The Case CX 160 C has a transport length of 8.4 meters, a transport width of 2.69 meters, and a transport height of 2.92 meters.

What are the undercarriage specifications of the Case CX 160 C?

The Case CX 160 C has a standard undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Case CX 160 C crawler excavator?

The Case CX 160 C crawler excavator has a dredging depth of 6.05 meters, a maximum horizontal reach of 9.35 meters, and features a monobloc boom.

What is the tear-out force of the Case CX 160 C?

The Case CX 160 C has a tear-out force of 74 kN.

What are the bucket specifications of the Case CX 160 C crawler excavator?

The Case CX 160 C crawler excavator has a bucket capacity of 0.95 cubic meters and a bucket width of 1.2 meters.

How much is a Case CX 160 C Crawler excavator (2012u20132016) worth?

The residual value of the Case CX 160 C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
