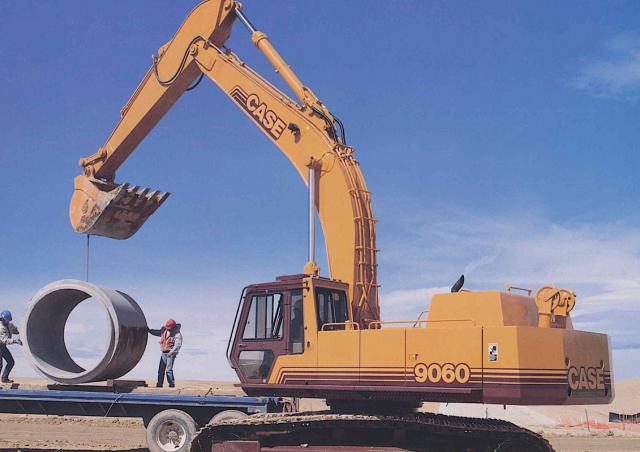

9060 Case excavator specs & Dimensions (1993 - 2015)

Case 9060 is a Crawler Excavator manufactured from 1993 to 2015. It has a weight of 44.67 tons and a track width of 910 mm. The tr…

Case 9060 is a Crawler Excavator manufactured from 1993 to 2015. It has a weight of 44.67 tons and a track width of 910 mm. The transport dimensions are 12.17 meters in length, 3.66 meters in width, and 4.78 meters in height. The excavator features a tear-out force of 217 kN, a dredging depth of 9.78 meters, and a maximum horizontal reach of 13.72 meters. The bucket width is 1.83 meters, with a bucket capacity ranging from 0.77 m³ to 3.19 m³.

Crawler Excavators Case 9060

Technical specs - 9060 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
44.67 t
Transport length
12.17 m
Transport width
3.66 m
Transport height
4.78 m
Bucket capacity
3.19 m³
Bucket capacity min.
0.77 m³
Bucket capacity max.
3.19 m³
Undercarriage
HD
Track width
910 mm
Max. Reach horizontal
13.72 m
Dredging depth
9.78 m
Tear-out force
217 kN
Bucket width
1.83 m
Engine manuf.
Mitsubishi
Engine type
MT-6D22TC
Engine power
206 kW
Displacement
11.15 l
Revolutions at max torque
1500 rpm
Max. torque
1056 Nm
No. of cylinders
6
Cylinder bore x stroke
130x140 mm

More technical details, like: boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 9060 FAQ

When was the Case 9060 manufactured?

The Case 9060 was manufactured from 1993 to 2015.

How much does the Case 9060 crawler excavator weigh?

The Case 9060 crawler excavator weighs 44.67 tons.

What are the transport dimensions of the Case 9060 crawler excavator?

The Case 9060 crawler excavator has a transport length of 12.17 meters, a transport width of 3.66 meters, and a transport height of 4.78 meters.

What are the undercarriage specifications of the Case 9060 crawler excavator?

The Case 9060 crawler excavator has a heavy duty undercarriage with a track width of 910 mm.

What is the excavation performance of the Case 9060 crawler excavator?

The Case 9060 crawler excavator has a dredging depth of 9.78 meters and a maximum horizontal reach of 13.72 meters.

What is the tear-out force of the Case 9060 crawler excavator?

The Case 9060 crawler excavator has a tear-out force of 217 kN.

What are the specifications of the primary work tool bucket on the Case 9060 crawler excavator?

The Case 9060 crawler excavator has a bucket with a capacity ranging from 0.77 to 3.19 cubic meters and a width of 1.83 meters.

How much is a Case 9060 Crawler excavator (1993u20132015) worth?

The residual value of the Case 9060 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
