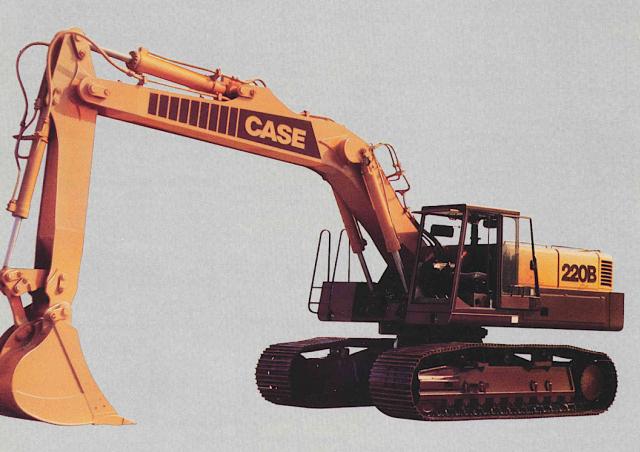

220B Case excavator specs & Dimensions (1985 - 2015)

Case 220B is a Crawler Excavator manufactured from 1985 to 2015, with a weight of 43.27 tons. It features a track width of 850 mm,…

Case 220B is a Crawler Excavator manufactured from 1985 to 2015, with a weight of 43.27 tons. It features a track width of 850 mm, a transport length of 11.95 meters, a transport width of 3.62 meters, and a transport height of 3.37 meters. The excavator has a tear-out force of 239 kN, a dredging depth of 8.43 meters, and a maximum horizontal reach of 12.53 meters. The bucket width is 1.4 meters, with a bucket capacity ranging from 1.15 m³ to 1.91 m³.

Crawler Excavators Case 220B

Technical specs - 220B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
43.27 t
Transport length
11.95 m
Transport width
3.62 m
Transport height
3.37 m
Bucket capacity
1.91 m³
Bucket capacity min.
1.15 m³
Bucket capacity max.
1.91 m³
Track width
850 mm
Max. Reach horizontal
12.53 m
Dredging depth
8.43 m
Tear-out force
239 kN
Bucket width
1.4 m
Model series
B
Engine manuf.
Deutz
Engine type
FI0L413F
Engine power
221 kW
Displacement
15.95 l
Revolutions at max torque
1500 rpm
Max. torque
900 Nm
No. of cylinders
10
Cylinder bore x stroke
125x130 mm

More technical details, like: undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 220B FAQ

When was the Case 220B manufactured?

The Case 220B was manufactured from 1985 to 2015.

How much does the Case 220B weigh?

The Case 220B weighs 43.27 tons.

What are the transport dimensions of the Case 220B crawler excavator?

The Case 220B crawler excavator has a transport length of 11.95 meters, a transport width of 3.62 meters, and a transport height of 3.37 meters.

What is the track width of the Case 220B's undercarriage?

The Case 220B has a track width of 850 mm on its undercarriage.

What is the excavation performance of the Case 220B crawler excavator?

The Case 220B crawler excavator has a dredging depth of 8.43 meters and a maximum horizontal reach of 12.53 meters.

What is the tear-out force of the Case 220B crawler excavator?

The Case 220B crawler excavator has a tear-out force of 239 kN.

What are the specifications of the primary work tool bucket on the Case 220B?

The Case 220B's primary work tool bucket has a capacity ranging from 1.15 to 1.91 cubic meters, with a maximum capacity of 1.91 cubic meters and a width of 1.4 meters.

How much is a Case 220B Crawler excavator (1985u20132015) worth?

The residual value of the Case 220B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
