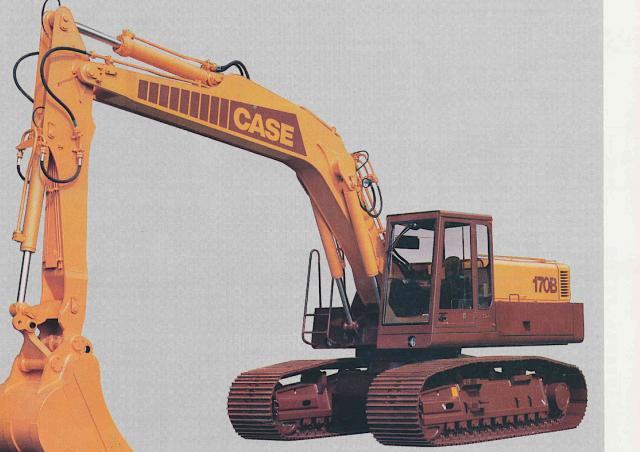

170B Case excavator specs & Dimensions (1985 - 1987)

Case 170B is a Crawler Excavator manufactured from 1985 to 1987. It has a weight of 31.83 tons and a track width of 850 mm. The tr…

Case 170B is a Crawler Excavator manufactured from 1985 to 1987. It has a weight of 31.83 tons and a track width of 850 mm. The transport dimensions are 11.1 meters in length, 3.45 meters in width, and 3.26 meters in height. The excavator features a tear-out force of 196 kN, a dredging depth of 7.65 meters, and a maximum horizontal reach of 11.28 meters. The bucket width is 1.4 meters, with a capacity ranging from 1.06 to 1.53 cubic meters.

Crawler Excavators Case 170B

Technical specs - 170B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.83 t
Transport length
11.1 m
Transport width
3.45 m
Transport height
3.26 m
Bucket capacity
1.53 m³
Bucket capacity min.
1.06 m³
Bucket capacity max.
1.53 m³
Track width
850 mm
Max. Reach horizontal
11.28 m
Dredging depth
7.65 m
Tear-out force
196 kN
Bucket width
1.4 m
Model series
B
Engine manuf.
Deutz
Engine type
BF6L913C
Engine power
131 kW

More technical details, like: undercarriage, boom, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 170B FAQ

When was the Case 170B manufactured?

The Case 170B was manufactured from 1985 to 1987.

How much does the Case 170B weigh?

The Case 170B weighs 31.83 tons.

What are the transport dimensions of the Case 170B crawler excavator?

The Case 170B has a transport length of 11.1 meters, a transport width of 3.45 meters, and a transport height of 3.26 meters.

What is the track width of the Case 170B crawler excavator?

The Case 170B crawler excavator has a track width of 850 mm.

What are the dredging depth and maximum horizontal reach of the Case 170B crawler excavator?

The Case 170B crawler excavator has a dredging depth of 7.65 meters and a maximum horizontal reach of 11.28 meters.

What is the tear-out force of the Case 170B crawler excavator?

The Case 170B crawler excavator has a tear-out force of 196 kN.

What are the specifications of the primary work tool bucket on the Case 170B crawler excavator?

The Case 170B crawler excavator has a bucket with a capacity ranging from 1.06 to 1.53 cubic meters and a width of 1.4 meters.

How much is a Case 170B Crawler excavator (1985u20131987) worth?

The residual value of the Case 170B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
