400 Case Poclain excavator specs & Dimensions (1974 - 2026)

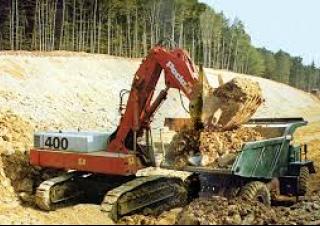

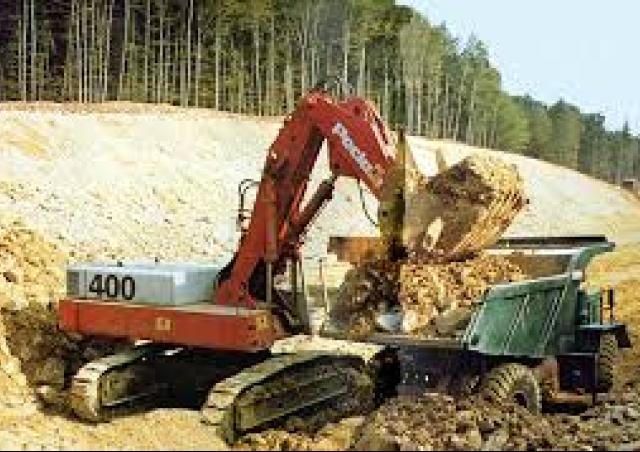

Case Poclain 400 is a crawler excavator manufactured since 1974, with a weight of 68 tons. It has a transport width of 3 meters, a…

Case Poclain 400 is a crawler excavator manufactured since 1974, with a weight of 68 tons. It has a transport width of 3 meters, a dredging depth of 10 meters, and a maximum horizontal reach of 14 meters.

Crawler Excavators Case Poclain 400

Technical specs - 400 Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
68 t
Transport width
3.98 m
Bucket capacity
0.98 m³
Bucket capacity min.
0.98 m³
Undercarriage
LC
Boom
MB
Max. Reach horizontal
14.8 m
Dredging depth
10.6 m
Engine manuf.
Deutz
Engine type
BF 12 L 413
No. of cylinders
12

More technical details, like: transport length, transport height, bucket capacity max., track width, tear-out force, bucket width, model series, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: transport length, transport height, bucket capacity max., track width, tear-out force, bucket width, model series, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 400 FAQ

When was the Case Poclain 400 manufactured?

The Case Poclain 400 was first produced in 1974.

How much does the Case Poclain 400 weigh?

The Case Poclain 400 weighs 68 tons.

What is the transport width of the Case Poclain 400 crawler excavator?

The transport width of the Case Poclain 400 crawler excavator is 3.98 meters.

What type of undercarriage does the Case Poclain 400 have?

The Case Poclain 400 has a long undercarriage.

What are the excavation performance specifications of the Case Poclain 400?

The Case Poclain 400 has a dredging depth of 10.6 meters, a maximum horizontal reach of 14.8 meters, and is equipped with a monobloc boom.

What is the bucket capacity of the Case Poclain 400?

The Case Poclain 400 has a bucket capacity of 0.98 cubic meters.

How much is a Case Poclain 400 Crawler excavator (1974u20132025) worth?

The residual value of the Case Poclain 400 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
