220 CK B Case Poclain excavator specs & Dimensions (1987 - 1994)

Case Poclain 220 CK B is a crawler excavator manufactured from 1987 to 1994, with a weight of 45 tons. It features a track width o…

Case Poclain 220 CK B is a crawler excavator manufactured from 1987 to 1994, with a weight of 45 tons. It features a track width of 700 mm, a transport length of 11.2 meters, a transport width of 3.27 meters, and a transport height of 3.37 meters.

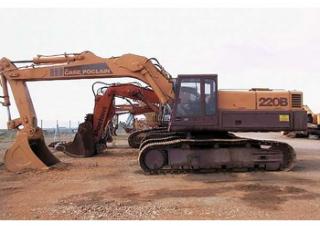

Crawler Excavators Case Poclain 220 CK B

Technical specs - 220 CK B Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
45 t
Transport length
11.2 m
Transport width
3.27 m
Transport height
3.37 m
Bucket capacity
2.4 m³
Track width
700 mm
Model series
CK
Engine manuf.
Deutz
Engine type
F10L413F
Engine power
205 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Case Poclain 220 CK B FAQ

When was the Case Poclain 220 CK B manufactured?

The Case Poclain 220 CK B was manufactured from 1987 to 1994.

How much does the Case Poclain 220 CK B weigh?

The Case Poclain 220 CK B weighs 45 tons.

What are the transport dimensions of the Case Poclain 220 CK B?

The Case Poclain 220 CK B has a transport length of 11.2 meters, a transport width of 3.27 meters, and a transport height of 3.37 meters.

What is the track width of the Case Poclain 220 CK B's undercarriage?

The Case Poclain 220 CK B has a track width of 700 mm.

What is the bucket capacity of the Case Poclain 220 CK B?

The bucket capacity of the Case Poclain 220 CK B is 2.4 cubic meters.

How much is a Case Poclain 220 CK B Crawler excavator (1987u20131994) worth?

The residual value of the Case Poclain 220 CK B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
