1488 LC Case Poclain excavator specs & Dimensions (1997 - 2001)

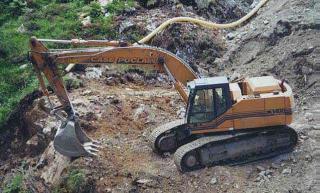

Case Poclain 1488 LC is a crawler excavator manufactured from 1997 to 2001, with a weight of 34.5 tons. It features a track width …

Case Poclain 1488 LC is a crawler excavator manufactured from 1997 to 2001, with a weight of 34.5 tons. It features a track width of 600 mm, a transport length of 10.7 meters, a transport width of 3.17 meters, and a transport height of 3.5 meters.

Crawler Excavators Case Poclain 1488 LC

Technical specs - 1488 LC Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.5 t
Transport length
10.7 m
Transport width
3.17 m
Transport height
3.5 m
Bucket capacity
1.85 m³
Track width
600 mm
Engine manuf.
Case
Engine type
6T 830
Engine power
148 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Case Poclain 1488 LC FAQ

When was the Case Poclain 1488 LC manufactured?

The Case Poclain 1488 LC was manufactured from 1997 to 2001.

How much does the Case Poclain 1488 LC weigh?

The Case Poclain 1488 LC weighs 34.5 tons.

What are the transport dimensions of the Case Poclain 1488 LC crawler excavator?

The Case Poclain 1488 LC has a transport length of 10.7 meters, a transport width of 3.17 meters, and a transport height of 3.5 meters.

What is the track width of the Case Poclain 1488 LC's undercarriage?

The Case Poclain 1488 LC has a track width of 600 mm.

What is the bucket capacity of the Case Poclain 1488 LC?

The bucket capacity of the Case Poclain 1488 LC is 1.85 cubic meters.

How much is a Case Poclain 1488 LC Crawler excavator (1997u20132001) worth?

The residual value of the Case Poclain 1488 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
