E 60 Bobcat excavator specs & Dimensions (2009 - 2013)

Bobcat E 60 is a Crawler Excavator manufactured from 2009 to 2013, with a weight of 6.02 tons. It features a track width of 400 mm…

Bobcat E 60 is a Crawler Excavator manufactured from 2009 to 2013, with a weight of 6.02 tons. It features a track width of 400 mm, a transport length of 5.57 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters. The excavator has a tear-out force of 26 kN and comes equipped with a blade.

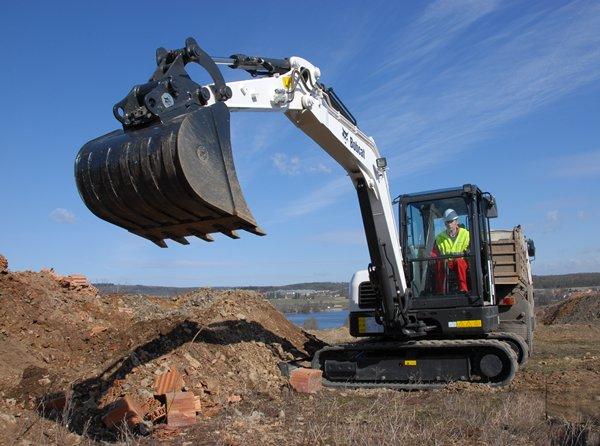

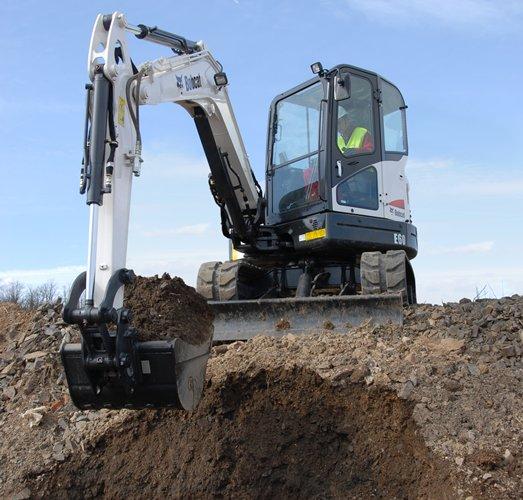

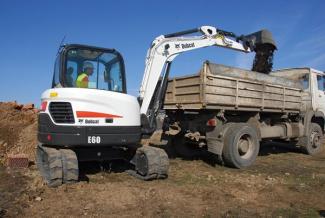

Crawler Excavators Bobcat E 60
Crawler Excavators Bobcat E 60
Crawler Excavators Bobcat E 60
Crawler Excavators Bobcat E 60
Crawler Excavators Bobcat E 60
Crawler Excavators Bobcat E 60

Visit Bobcat live at

Technical specs - E 60 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.02 t
Transport length
5.57 m
Transport width
1.98 m
Transport height
2.55 m
Track width
400 mm
Max. Reach horizontal
6.85 m
Dredging depth
4.14 m
Tear-out force
26 kN
Model series
E
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
37.3 kW
Displacement
3.3 l
Revolutions at max torque
1400 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E 60 FAQ

When was the Bobcat E 60 manufactured?

The Bobcat E 60 was manufactured from 2009 to 2013.

How much does the Bobcat E 60 weigh?

The Bobcat E 60 weighs 6.02 tons.

What are the transport dimensions of the Bobcat E 60 crawler excavator?

The Bobcat E 60 has a transport length of 5.57 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Bobcat E 60's undercarriage?

The Bobcat E 60 has a track width of 400 mm.

What are the excavation performance specifications of the Bobcat E 60?

The Bobcat E 60 has a dredging depth of 4.14 meters and a maximum horizontal reach of 6.85 meters.

What is the tear-out force of the Bobcat E 60?

The Bobcat E 60 has a tear-out force of 26 kN.

How much is a Bobcat E 60 Crawler excavator (2009u20132013) worth?

The residual value of the Bobcat E 60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
