340 LC Atlas excavator specs & Dimensions (2014 - 2016)

Atlas 340 LC is a crawler excavator manufactured from 2014 to 2016. It has a weight of 35.5 tons and a track width of 600 mm. The …

Atlas 340 LC is a crawler excavator manufactured from 2014 to 2016. It has a weight of 35.5 tons and a track width of 600 mm. The transport dimensions are 10.17 meters in length, 3.2 meters in width, and 3.25 meters in height. The tear-out force is 134 kN, and it features track adjustment as special equipment.

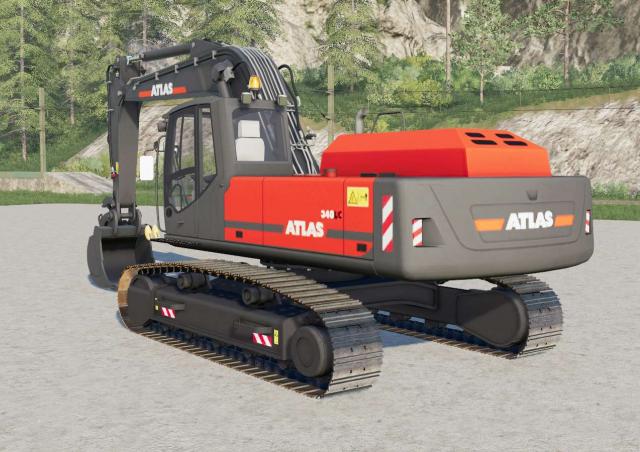

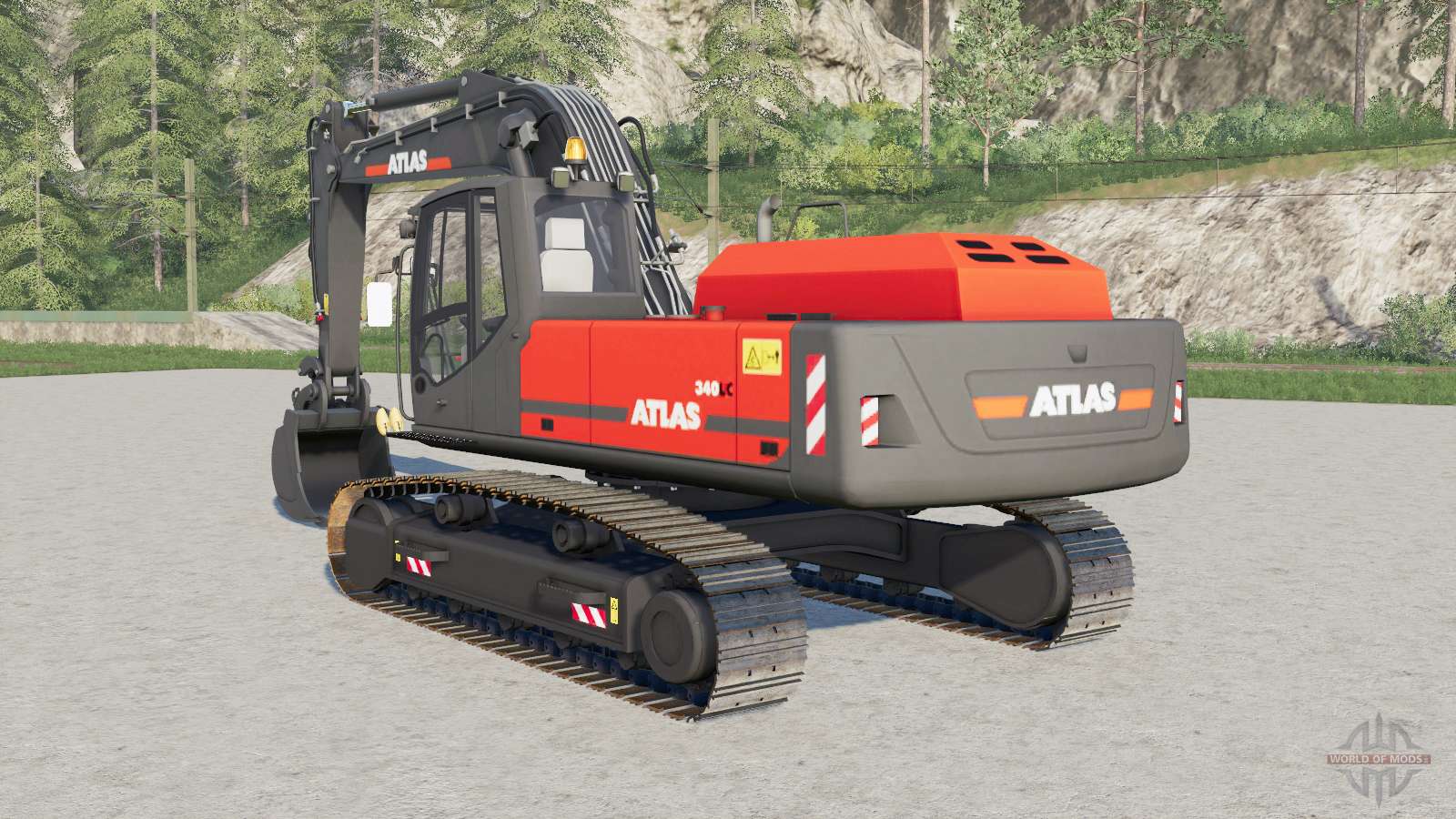

Crawler Excavators Atlas 340 LC

Visit Atlas live at

Technical specs - 340 LC Atlas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.5 t
Transport length
10.17 m
Transport width
3.2 m
Transport height
3.25 m
Bucket capacity
1.5 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.776 m
Dredging depth
6.349 m
Tear-out force
134 kN
Bucket width
1.5 m
Engine manuf.
Deutz
Engine type
TCD6.1
Engine power
180 kW
Displacement
7.1 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Atlas 340 LC FAQ

When was the Atlas 340 LC manufactured?

The Atlas 340 LC was manufactured from 2014 to 2016.

How much does the Atlas 340 LC weigh?

The Atlas 340 LC weighs 35.5 tons.

What are the transport dimensions of the Atlas 340 LC crawler excavator?

The Atlas 340 LC crawler excavator has a transport length of 10.17 meters, a transport width of 3.2 meters, and a transport height of 3.25 meters.

What are the undercarriage specifications of the Atlas 340 LC?

The Atlas 340 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Atlas 340 LC crawler excavator?

The Atlas 340 LC crawler excavator has a dredging depth of 6.349 meters, a maximum horizontal reach of 9.776 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Atlas 340 LC, given that no power rating data is available?

The Atlas 340 LC has a tear-out force of 134 kN. No power rating data is provided in the source.

What are the bucket specifications of the Atlas 340 LC crawler excavator?

The Atlas 340 LC crawler excavator has a bucket capacity of 1.5 cubic meters and a bucket width of 1.5 meters.

How much is a Atlas 340 LC Crawler excavator (2014u20132016) worth?

The residual value of the Atlas 340 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
