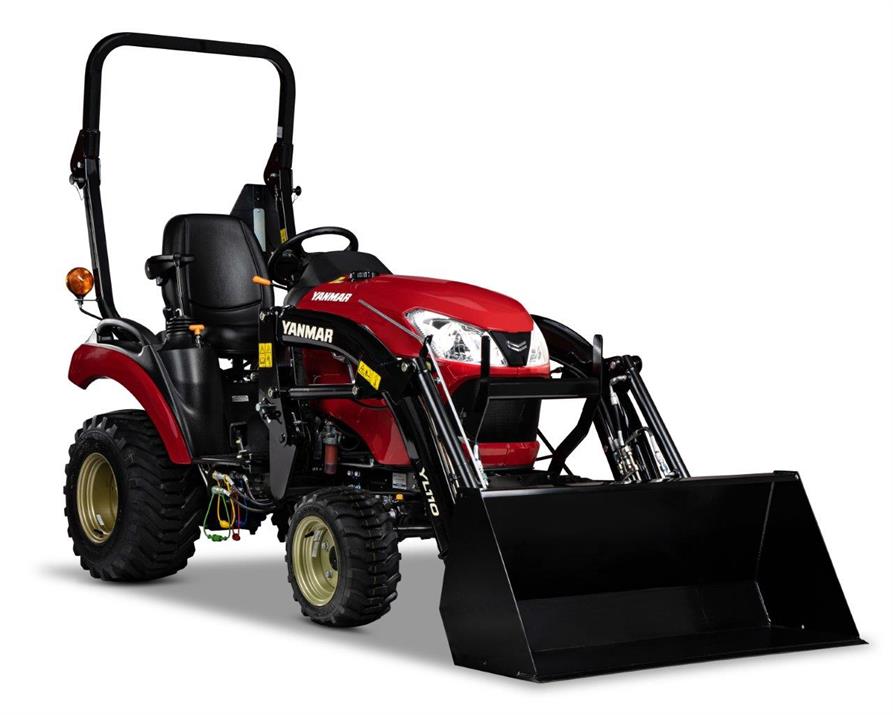

SA223 Yanmar SA223 Specifications & Technical Data (2023—2026)

The Yanmar SA223 is a 4-wheel drive tractor manufactured by Yanmar since 2023. It has a weight of 0.697 tons and is powered by an …

The Yanmar SA223 is a 4-wheel drive tractor manufactured by Yanmar since 2023. It has a weight of 0.697 tons and is powered by an engine with a power output of 11.6 kW. The tractor has a transport length of 2.594 meters and can travel at a speed of 15.2 km/h. It has a transport width of 1.2 meters and a transport height of 2.09 meters.

Vehicles Compact Utility Tractors Yanmar SA223

Technical specs - SA223 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
0.7 t
Travel speed
15.2 km/h
Back tyres
26x12.0-12 4PR
Front tyres
18x8.50-10 4PR
Transport length
2.59 m
Transport width
1.2 m
Transport height
2.09 m
Transmission
2
Attachment
H/M/F
Model series
SA
Engine manuf.
Yanmar
Engine type
3TNM74F
Engine power
11.6 kW
Displacement
0.993 l
No. of cylinders
3
Cylinder bore x stroke
74x77 mm

More technical details, like: bridge length, bridge width, steering mode, dimension lxwxh, revolutions at max torque, max. torque, weight, emission level are available in the full technical specs.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
All-wheel drive
Yes
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
No

Download datasheets (PDF)

Yanmar SA223 FAQ

What is the weight of Yanmar SA223?

The weight of Yanmar SA223 is 0.7 tons.

What is the size of the Yanmar SA223 4WD tractor?

The size of the Yanmar SA223 4WD tractor is 1.2 meters in width, 2.09 meters in height, and 2.59 meters in length.

What engine does the Yanmar SA223 4WD tractor have?

The Yanmar SA223 4WD tractor is equipped with a Yanmar 3TNM74F engine, which has a power output of 15.6 kW, a displacement of 0.99 liters, and 3 cylinders.
