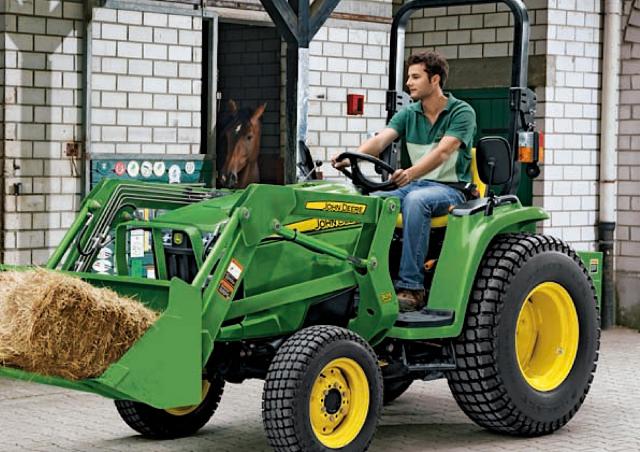

    John Deere 3520 Specifications & Technical Data (2004-2015)

    Rate this machine now!

    Weight without attachment: 1.7t – Back tyres: 41x14.00-20 – Front tyres: 27x8.50-15 – Transport length: 3.23m – Transport width: 1.728m – Transport height: 2.278m

    Technical specs - 3520 John Deere

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight without attachment 1.7 t
    • Back tyres 41x14.00-20
    • Front tyres 27x8.50-15
    • Transport length 3.23 m
    • Transport width 1.728 m
    • Transport height 2.278 m
    • Transmission 12/12
    • Steering mode FL
    • Attachment H/M
    • Travel speed 33 km/h
    • Engine manuf. Yanmar
    • Engine type k.A.
    • Engine power 27.3 kW

    More technical details, like: bridge length, bridge width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, weight, emission level are available in the full technical specs.

    Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • All-wheel drive
    • Codriver seat
    • Rear hydraulic
    • Frontblade
    • Load tippable
    • Rear PTO
