Vehicles Compact Utility Tractors Kubota L2501 DG
Kubota

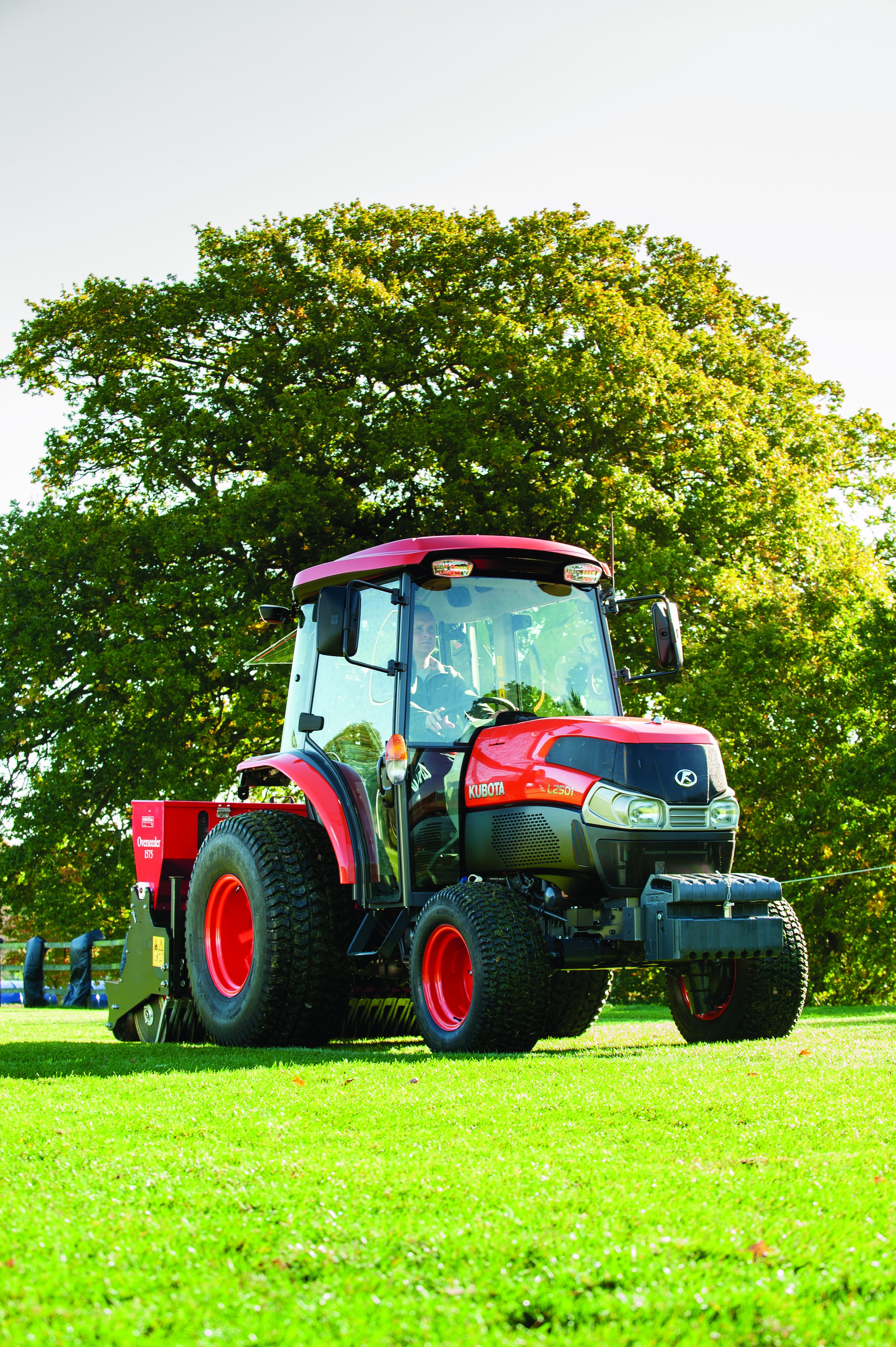

Kubota L2501 DG Specifications & Technical Data (2018-2021)

Rate this machine now!

Weight without attachment: 1.885t – Travel speed : 30km/h – Back tyres: 340/85 R28 – Front tyres: 280/70 18 – Transport length: 3.25m – Transport width: 1.5m

Technical specs - L2501 DG Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight without attachment 1.885 t
  • Travel speed 30 km/h
  • Back tyres 340/85 R28
  • Front tyres 280/70 18
  • Transport length 3.25 m
  • Transport width 1.5 m
  • Transport height 2.375 m
  • Transmission 24/16
  • Steering mode FL
  • Attachment H/F
  • Model series L
  • Engine manuf. Kubota
  • Engine type V2403
  • Engine power 36 kW
  • Displacement 2.434 l
  • No. of cylinders 4
  • Emission level III A

More technical details, like: bridge length, bridge width, average fuel consumption, fuel consumption range (min - max), dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, weight are available in the full technical specs.

Special equipment

  • Cabin
  • Front hydraulics
  • Front PTO
  • All-wheel drive
  • Codriver seat
  • Rear hydraulic
  • Frontblade
  • Load tippable
  • Rear PTO
