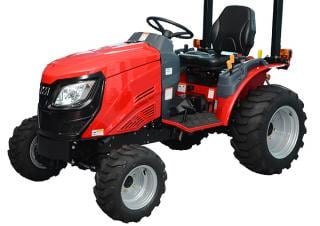

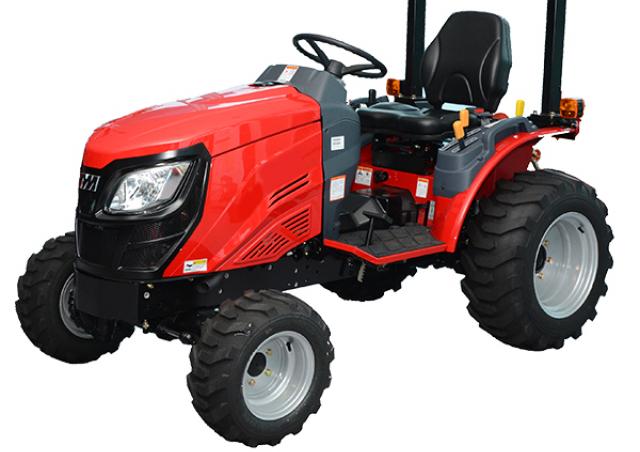

TS23 TYM TS23 Specifications & Technical Data (2023—2026)

Weight without attachment: 0.74t – Travel speed: 17km/h – Back tyres: 9.5 x 16 – Front tyres: 6 x 12 – Transport length: 1.46m – Transport width: 1.164m

Vehicles Compact Utility Tractors TYM TS23

Technical specs - TS23 TYM

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
0.74 t
Travel speed
17 km/h
Back tyres
9.5 x 16
Front tyres
6 x 12
Transport length
1.46 m
Transport width
1.164 m
Transmission
2
Engine manuf.
Yanmar
Engine type
3TNV80
Engine power
23.9 HP
Displacement
1.267 l
No. of cylinders
3

More technical details, like: bridge length, bridge width, transport height, steering mode, attachment, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
No

Download datasheets (PDF)

Buy & Rent

Compare TYM TS23 with similar Compact Utility Tractors

TYM TS23

TYM TS23

Weight without attachment:
0.74 t
Travel speed:
17 km/h
Back tyres:
9.5 x 16
Front tyres:
6 x 12
Iseki TXG 237

Iseki TXG 237

Weight without attachment:
0.62 t
Travel speed:
15 km/h
Back tyres:
26x12.00-12
Front tyres:
18x8.50-8
Shibaura ST 318 M

Shibaura ST 318 M

Weight without attachment:
0.742 t
Travel speed:
18 km/h
Back tyres:
20x8-10/29x12-15
Yanmar SA221 R

Yanmar SA221 R

Weight without attachment:
0.768 t
Travel speed:
13 km/h
Back tyres:
26x12.0-12 4PR
Front tyres:
18x8.50-10 4PR
LS XJ25

LS XJ25

Weight without attachment:
0.83 t
Back tyres:
9.5-16
Front tyres:
6-12
