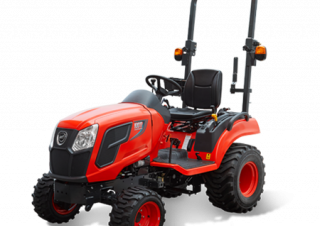

CS2520 Kioti CS2520 Specifications & Technical Data (2023—2025)

Weight without attachment: 0.705t – Travel speed: 15.4km/h – Back tyres: 26×12.00-12 – Front tyres: 18×8.5-10 – Transport length: 2.523m – Transport width: 1.168m

Vehicles Compact Utility Tractors Kioti CS2520

Technical specs - CS2520 Kioti

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
0.705 t
Travel speed
15.4 km/h
Back tyres
26×12.00-12
Front tyres
18×8.5-10
Transport length
2.523 m
Transport width
1.168 m
Transport height
2.226 m
Transmission
2 range
Model series
CS
Engine manuf.
N/A
Engine type
3C100LFH-U2
Engine power
18.3 kW
Displacement
1.007 l
No. of cylinders
3

More technical details, like: bridge length, bridge width, steering mode, attachment, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, weight, emission level are available in the full technical specs.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
Yes
