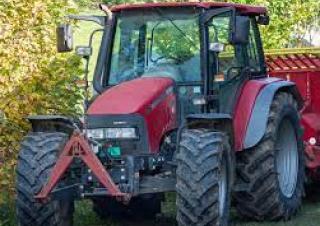

JXU 95 Case IH JXU 95 Specifications & Technical Data (2008—2012)

Weight without attachment: 4.2t – Back tyres: 480/70R34 – Front tyres: 10.00-16 – Transport length: 4.1m – Transport height: 2.7m – Model series: JXU

Vehicles Compact Utility Tractors Case IH JXU 95

Technical specs - JXU 95 Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
4.2 t
Back tyres
480/70R34
Front tyres
10.00-16
Transport length
4.1 m
Transport height
2.7 m
Model series
JXU
Engine manuf.
Iveco
Engine type
NEF F4C
Engine power
71 kW
Displacement
4.5 l
Max. torque
404.1 Nm
No. of cylinders
4
Cylinder bore x stroke
104 x 132 mm
Emission level
Tier III

More technical details, like: bridge length, bridge width, travel speed, transport width, transmission, steering mode, attachment, dimension lxwxh, revolutions at max torque, weight are available in the full technical specs.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
Yes
All-wheel drive
Yes
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
Yes
