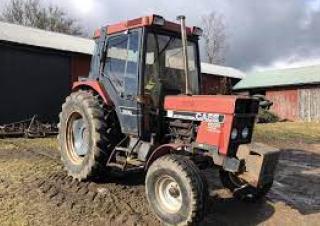

585 XL Case IH 585 XL Specifications & Technical Data (1985—1990)

Weight without attachment: 2.903t – Travel speed: 32.7km/h – Back tyres: 13.6-38 – Front tyres: 7.50-18 – Transport length: 3.61m – Transport height: 2.61m

Vehicles Compact Utility Tractors Case IH 585 XL

Technical specs - 585 XL Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight without attachment
2.903 t
Travel speed
32.7 km/h
Back tyres
13.6-38
Front tyres
7.50-18
Transport length
3.61 m
Transport height
2.61 m
Engine manuf.
Case IH
Engine type
D-206
Engine power
44.7 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
220.1 Nm
No. of cylinders
4
Cylinder bore x stroke
99 x 111 mm

More technical details, like: transmission, bridge length, bridge width, transport width, steering mode, attachment, model series, dimension lxwxh, weight, emission level are available in the full technical specs.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
All-wheel drive
No
Codriver seat
No
Rear hydraulic
No
Frontblade
No
Load tippable
No
Rear PTO
Yes
