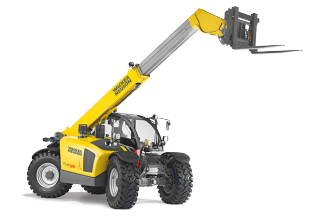

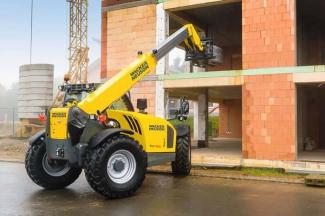

TH735 Wacker Neuson Telehandler Specs & Dimensions (2014 - 2018)

The Wacker Neuson TH735 is a telehandler manufactured between 2014 and 2018. It has a weight of 6.95 tons and a transport length o…

The Wacker Neuson TH735 is a telehandler manufactured between 2014 and 2018. It has a weight of 6.95 tons and a transport length of 4.88 meters. The telehandler has a nominal load at the center of gravity of 3.5 tons and a lifting height of 7 meters. The center of gravity is located at 500 millimeters. It has a travel speed of 20 km/h and a transport width of 2.28 meters. The transport height is 2.31 meters. The telehandler is equipped with StVZO equipment.

Telehandlers Wacker Neuson TH735
Telehandlers Wacker Neuson TH735
Telehandlers Wacker Neuson TH735
Telehandlers Wacker Neuson TH735
Telehandlers Wacker Neuson TH735
Telehandlers Wacker Neuson TH735

Visit Wacker Neuson live at

Technical specs - TH735 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.5 t
Centre of gravity
500 mm
Standard tyres
405/70-24
Transmission type
HY
Lifting height
7 m
Weight
6.95 t
Transport length
4.88 m
Transport width
2.28 m
Transport height
2.31 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
90 kW
Dimension lxwxh
701 x 592 x 790 mm
Displacement
3.6 l
Revolutions at max torque
1600 rpm
Max. torque
480 Nm
No. of cylinders
4
Cylinder bore x stroke
101 x 126 mm
Emission level
III B

More technical details, like: model series, max. reach horizontal, capacity at full forward reach, capacity at full lift height, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load...

More technical details, like: model series, max. reach horizontal, capacity at full forward reach, capacity at full lift height, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, telematics available, platform, engine manufacturer, emission rating, engine output - net, length - at ground, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
Yes
Inclination correction
No
Side displacement
No
