TF 42.7 CS-156 Merlo Telehandler Specs & Dimensions (2014 - 2016)

Name: Merlo TF 42.7 CS-156 Telehandlers
Brand: Merlo

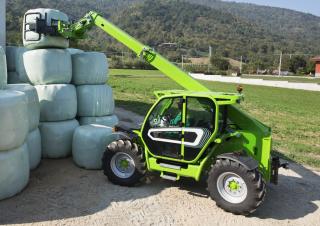

The Merlo TF 42.7 CS-156 is a telehandler manufactured from 2014 to 2016. It has a weight of 7.45 tons and a transport length of 4…

The Merlo TF 42.7 CS-156 is a telehandler manufactured from 2014 to 2016. It has a weight of 7.45 tons and a transport length of 4.49 meters. The telehandler has a nominal load at the center of gravity of 4.2 tons and a lifting height of 7.1 meters. It has a capacity of 1.6 tons at full forward reach and a center of gravity at 500 millimeters. The travel speed of the telehandler is 40 km/h and it has a maximum climbing ability of 45 percent. The capacity at full lift height is 3.5 tons. The transport width is 2.25 meters and the transport height is 2.53 meters. The special equipment includes a diesel particulate filter and StVZO equipment.

TF 42.7 CS-156

Years of manufacture: 2014—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

See offers

Technical specs - TF 42.7 CS-156 Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4.2 t

Model series: TF

Centre of gravity: 500 mm

Standard tyres: 460/70 R 24

Transmission type: HY

Max. Reach horizontal: 3.6 m

Capacity at full forward reach: 1.6 t

Lifting height: 7.1 m

Capacity at full lift height: 3.5 t

Weight: 7.45 t

Transport length: 4.49 m

Transport width: 2.25 m

Transport height: 2.53 m

Travel speed: 40 km/h

max. climbing ability: 45 %

Engine manuf.: Deutz

Engine type: TCD4.1 L4

Engine power: 115 kW

Displacement: 4.1 l

Revolutions at max torque: 1600 rpm

Emission level: 3b

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, emission rating, aspiration, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: Yes
StVZO Equipment: Yes
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

TF 42.7 CS-156 Merlo Specification for Europe (DE)
