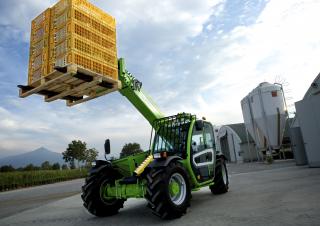

TF 33.7-115 Merlo Telehandler Specs & Dimensions (2016 - 2020)

The Merlo TF 33.7-115 is a telehandler manufactured between 2016 and 2020. It weighs 6.5 tons and has a transport length of 4.245 …

The Merlo TF 33.7-115 is a telehandler manufactured between 2016 and 2020. It weighs 6.5 tons and has a transport length of 4.245 meters. With a maximum horizontal reach of 3.5 meters, it can handle a nominal load of 3.3 tons at the center of gravity. The lifting height of this machine is 6.7 meters, and it can carry a capacity of 1.35 tons at full forward reach. The center of gravity is located at 500 millimeters. It has a travel speed of 40 km/h and can climb slopes with a maximum gradient of 45 percent. At full lift height, it can handle a capacity of 2.6 tons. The transport width is 2.1 meters, and the transport height is 2.12 meters. The special equipment included is the StVZO Equipment.

TF 33.7-115

Years of manufacture: 2016—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TF 33.7-115 Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.3 t

Model series: TF

Centre of gravity: 500 mm

Standard tyres: 405/70-20 14 PR

Transmission type: HY

Max. Reach horizontal: 3.5 m

Capacity at full forward reach: 1.35 t

Lifting height: 6.7 m

Capacity at full lift height: 2.6 t

Weight: 6.5 t

Transport length: 4.245 m

Transport width: 2.1 m

Transport height: 2.12 m

Travel speed: 40 km/h

max. climbing ability: 45 %

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 85 kW

Displacement: 3.6 l

Revolutions at max torque: 1600 rpm

Max. torque: 460 Nm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: Yes
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

TF 33.7-115 Merlo Specification for Europe (DE)

What Merlo says about this machine

What are the key characteristics of this model?

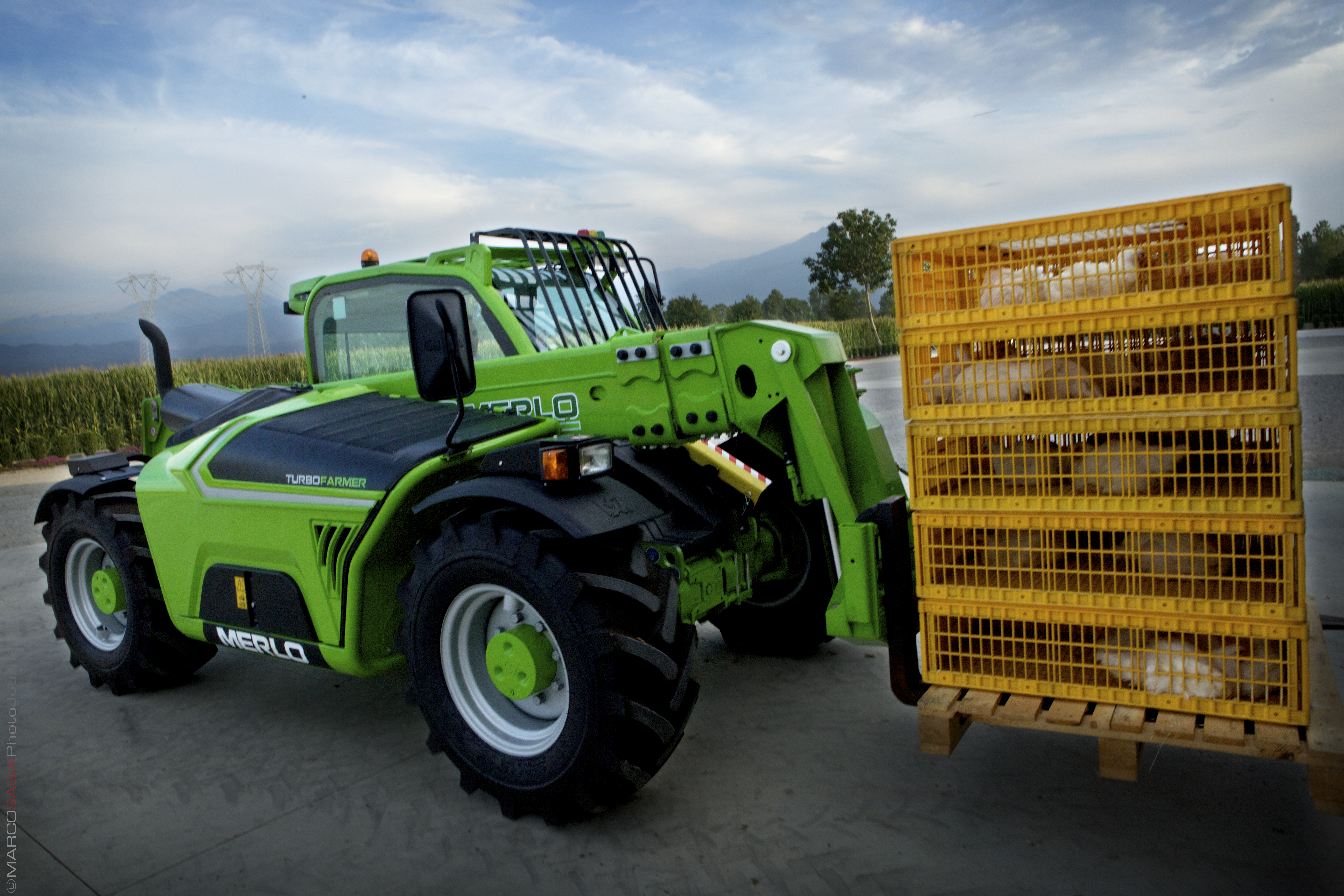

The Turbofarmer 33.7-115 lifts 3.3 t and reaches a lifting height of approx. 7 m. Its engine delivers 115 hp. It has a two-part telescopic arm and small dimensions of 2.1 m height x 2.1 m width.

What type of job is the machine best suited to do?

The powerful telescope moves straw bales with a bale spike and loads bulk goods with shovels. Pallet forks on the equipment carrier help to stack boxes and other loads.

Can you name features that differentiates this machine from others?

A 4-cylinder engine with a displacement of 3.6 l delivers 85 kW or 115 hp. EPD TOP works in the machine including optional automatic speed increase.

What type of companies is this machine designed for?

The compact loader is often used in agriculture, especially in stables, in mixed farms or in municipalities.
