Panoramic P 38.13 Plus Merlo Telehandler Specs & Dimensions (2006 - 2015)

Name: Merlo Panoramic P 38.13 Plus Telehandlers
Brand: Merlo

The Merlo Panoramic P 38.13 Plus is a telehandler manufactured by Merlo from 2006 to 2015. It has a weight of 8.65 tons and a tran…

The Merlo Panoramic P 38.13 Plus is a telehandler manufactured by Merlo from 2006 to 2015. It has a weight of 8.65 tons and a transport length of 5.24 meters. The telehandler has a nominal load at the center of gravity of 3.8 tons and a lifting height of 12.6 meters. It has a capacity of 0.8 tons at full forward reach and a center of gravity at 500 millimeters. The travel speed of the telehandler is 40 km/h. It has a capacity of 3.5 tons at full lift height. The transport width is 2.22 meters and the transport height is 2.44 meters. The special equipment of this telehandler includes inclination correction and side displacement.

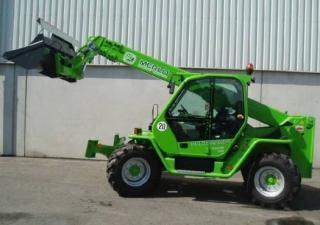

Telehandlers Merlo Panoramic P 38.13 Plus

Panoramic P 38.13 Plus

Years of manufacture: 2006—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Panoramic P 38.13 Plus Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.8 t

Model series: Panasonic

Centre of gravity: 500 mm

Standard tyres: 16/70-20

Max. Reach horizontal: 8.6 m

Capacity at full forward reach: 0.8 t

Lifting height: 12.6 m

Capacity at full lift height: 3.5 t

Weight: 8.65 t

Transport length: 5.24 m

Transport width: 2.22 m

Transport height: 2.44 m

Travel speed: 40 km/h

Engine manuf.: Perkins

Engine type: 1104D-44T

Engine power: 74.5 kW

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: Yes
Side displacement: Yes
