Panoramic P 37.12 Plus Merlo Telehandler Specs & Dimensions (2006 - 2015)

Name: Merlo Panoramic P 37.12 Plus Telehandlers
Brand: Merlo

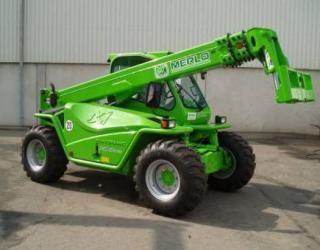

The Merlo Panoramic P 37.12 Plus is a telehandler manufactured by Merlo from 2006 to 2015. It has a weight of 8.5 tons and a trans…

The Merlo Panoramic P 37.12 Plus is a telehandler manufactured by Merlo from 2006 to 2015. It has a weight of 8.5 tons and a transport length of 4.85 meters. The telehandler has a nominal load at the center of gravity of 3.7 tons and a lifting height of 11.5 meters. It has a capacity of 0.6 tons at full forward reach and 2 tons at full lift height. The center of gravity is located at 500 millimeters. The telehandler has a travel speed of 40 km/h and a transport width of 2.22 meters. The transport height is 2.44 meters. Special equipment includes inclination correction and side displacement.

Panoramic P 37.12 Plus

Years of manufacture: 2006—2015

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Panoramic P 37.12 Plus Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.7 t

Model series: Panasonic

Centre of gravity: 500 mm

Standard tyres: 16/70-20

Max. Reach horizontal: 7.6 m

Capacity at full forward reach: 0.6 t

Lifting height: 11.5 m

Capacity at full lift height: 2 t

Weight: 8.5 t

Transport length: 4.85 m

Transport width: 2.22 m

Transport height: 2.44 m

Travel speed: 40 km/h

Engine manuf.: Perkins

Engine type: 1104D-44T

Engine power: 74.5 kW

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: Yes
Side displacement: Yes

Download datasheets (PDF)
