P 40.9 K Merlo Telehandler Specs & Dimensions (2002 - 2006)

Name: Merlo P 40.9 K Telehandlers
Brand: Merlo
Rating: 8,00 (2 reviews)

Model rating: 8,00 / 10

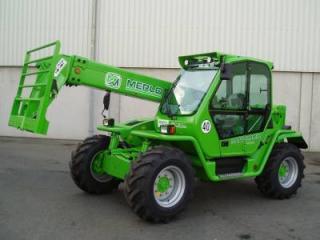

The Merlo P 40.9 K is a telehandler manufactured from 2002 to 2006. It has a weight of 7.75 tons and a transport length of 4.995 m…

The Merlo P 40.9 K is a telehandler manufactured from 2002 to 2006. It has a weight of 7.75 tons and a transport length of 4.995 meters. The telehandler has a nominal load at the center of gravity of 4 tons and a lifting height of 9.07 meters. It has a capacity of 1 ton at full forward reach and a capacity of 3 tons at full lift height. The center of gravity is located at 500 millimeters. The transport width is 2.22 meters and the transport height is 2.44 meters.

P 40.9 K

Years of manufacture: 2002—2006

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - P 40.9 K Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4 t

Model series: P

Centre of gravity: 500 mm

Standard tyres: 16/70-20

Transmission type: Hy

Max. Reach horizontal: 5.2 m

Capacity at full forward reach: 1 t

Lifting height: 9.07 m

Capacity at full lift height: 3 t

Weight: 7.75 t

Transport length: 4.995 m

Transport width: 2.22 m

Transport height: 2.44 m

Travel speed: 20 km/h

Engine manuf.: Perkins

Engine type: 1004.42

Engine power: 62 kW

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

P 40.9 K Merlo Specification for Europe (DE)
