P 40.17 EE Merlo Telehandler Specs & Dimensions (2022 - 2026)

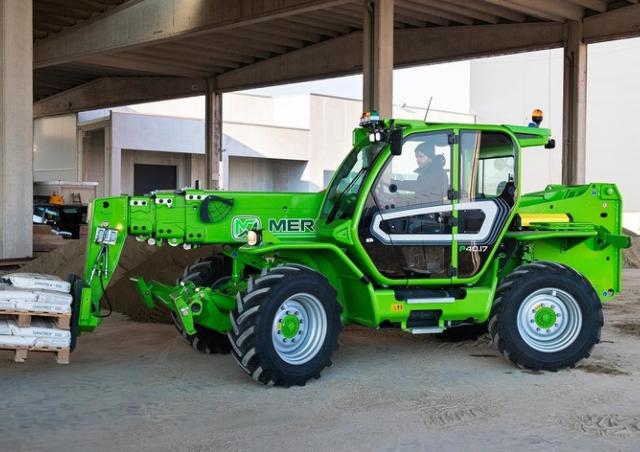

The Merlo P 40.17 EE is a telehandler manufactured since 2022. It weighs 11.67 tons and has a transport length of 5.97 meters. The…

The Merlo P 40.17 EE is a telehandler manufactured since 2022. It weighs 11.67 tons and has a transport length of 5.97 meters. The maximum reach horizontally is 13.5 meters, and it has a nominal load capacity of 4 tons at the center of gravity. The lifting height is 16.6 meters, and it has a capacity of 0.75 tons at full forward reach. The travel speed is 33 km/h, and the capacity at full lift height is 2.5 tons. The transport width is 2.42 meters, and the transport height is 2.5 meters.

Telehandlers Merlo P 40.17 EE

Technical specs - P 40.17 EE Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4 t
Model series
P
Standard tyres
400/70-24
Max. Reach horizontal
13.5 m
Capacity at full forward reach
0.75 t
Lifting height
16.6 m
Capacity at full lift height
2.5 t
Weight
11.67 t
Transport length
5.97 m
Transport width
2.42 m
Transport height
2.5 m
Travel speed
33 km/h
Engine manuf.
Deutz
Engine type
TD2.9
Engine power
55.4 kW
Displacement
2.9 l
No. of cylinders
4
Emission level
Stage IIIB

More technical details, like: centre of gravity, transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque...

More technical details, like: centre of gravity, transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
