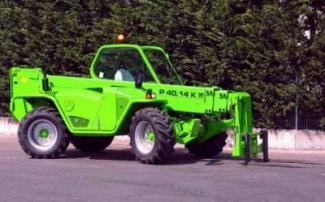

P 40.14 K Merlo Telehandler Specs & Dimensions (2003 - 2006)

Name: Merlo P 40.14 K Telehandlers
Brand: Merlo

The Merlo P 40.14 K is a telehandler manufactured from 2003 to 2006. It has a weight of 9.9 tons and a transport length of 5.89 me…

The Merlo P 40.14 K is a telehandler manufactured from 2003 to 2006. It has a weight of 9.9 tons and a transport length of 5.89 meters. The telehandler has a nominal load at the center of gravity of 4 tons and a lifting height of 14 meters. It can carry a capacity of 1 ton at full forward reach and 2.5 tons at full lift height. The center of gravity is located at 500 millimeters. The transport width is 2.4 meters and the transport height is 2.51 meters.

P 40.14 K

Years of manufacture: 2003—2006

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - P 40.14 K Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4 t

Model series: P

Centre of gravity: 500 mm

Standard tyres: 405/70-24

Transmission type: Hy

Max. Reach horizontal: 9.5 m

Capacity at full forward reach: 1 t

Lifting height: 14 m

Capacity at full lift height: 2.5 t

Weight: 9.9 t

Transport length: 5.89 m

Transport width: 2.4 m

Transport height: 2.51 m

Travel speed: 40 km/h

Engine manuf.: Deutz

Engine type: 4 Zyl. Turbo

Engine power: 74.9 kW

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download datasheets (PDF)

P 40.14 K Merlo Specification for Europe (DE)
