P 28.7 K Merlo Telehandler Specs & Dimensions (2001 - 2005)

The Merlo P 28.7 K is a telehandler manufactured from 2001 to 2005. It weighs 6.5 tons and has a nominal load at the center of gra…

The Merlo P 28.7 K is a telehandler manufactured from 2001 to 2005. It weighs 6.5 tons and has a nominal load at the center of gravity of 2.8 tons. The lifting height of this machine is 6.95 meters. It has a capacity of 1.1 tons at full forward reach and a capacity of 2.8 tons at full lift height. The center of gravity is located at 500 millimeters.

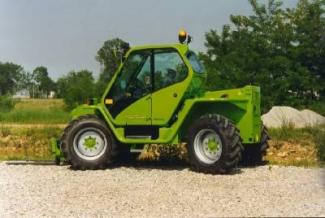

Telehandlers Merlo P 28.7 K

Technical specs - P 28.7 K Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
2.8 t
Model series
P
Centre of gravity
500 mm
Standard tyres
405/70-24
Transmission type
Hy
Max. Reach horizontal
3.58 m
Capacity at full forward reach
1.1 t
Lifting height
6.95 m
Capacity at full lift height
2.8 t
Weight
6.5 t
Travel speed
20 km/h
Engine manuf.
Perkins
Engine type
1004.42
Engine power
62 kW

More technical details, like: transport length, transport width, transport height, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh...

More technical details, like: transport length, transport width, transport height, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
