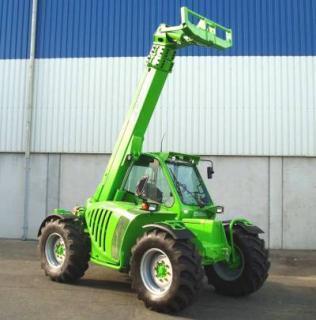

Multifarmer 30.9 Classic 2 Merlo Telehandler Specs & Dimensions (2005 - 2014)

The Merlo Multifarmer 30.9 Classic 2 is a telehandler manufactured by Merlo from 2005 to 2014. It weighs 6.65 tons and has a trans…

The Merlo Multifarmer 30.9 Classic 2 is a telehandler manufactured by Merlo from 2005 to 2014. It weighs 6.65 tons and has a transport length of 5.13 meters. The telehandler has a nominal load of 3 tons at the center of gravity and can lift loads up to a height of 8.55 meters. It has a capacity of 0.6 tons at full forward reach and 2.5 tons at full lift height. The transport width is 2.25 meters and the transport height is 2.495 meters.

Telehandlers Merlo Multifarmer 30.9 Classic 2

Technical specs - Multifarmer 30.9 Classic 2 Merlo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3 t
Model series
Multifarmer
Centre of gravity
500 mm
Standard tyres
460.70R24
Max. Reach horizontal
5.6 m
Capacity at full forward reach
0.6 t
Lifting height
8.55 m
Capacity at full lift height
2.5 t
Weight
6.65 t
Transport length
5.13 m
Transport width
2.25 m
Transport height
2.495 m
Engine manuf.
Deutz
Engine type
TCD2012
Engine power
84 kW

More technical details, like: transmission type, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement...

More technical details, like: transmission type, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, emission rating, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
