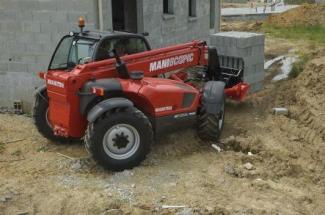

The Manitou MT 1030 ST Evolution is a telehandler manufactured from 2007 to 2014. It weighs 7.47 tons and has a maximum horizontal…
The Manitou MT 1030 ST Evolution is a telehandler manufactured from 2007 to 2014. It weighs 7.47 tons and has a maximum horizontal reach of 7.15 meters. The nominal load at the center of gravity is 3 tons, and it can lift up to a height of 10 meters. At full forward reach, it has a capacity of 0.85 tons, and at full lift height, it can handle loads up to 2.5 tons. The center of gravity is located at 500 millimeters.
More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load...
More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.
All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel
95 or 101 HP Perkins Engine and torque converter transmission driving a 4 speed gear box, perfectly suited for travelling on the road. 8200 daN (S) or 8300 daN (ST) drawbar pull enabling fast achievement of any loading task. Hydraulic Pump operating at 250 bars and supplying a 105 l/m flow. Simultaneous use of hydraulic functions and 5350 daN tear out force.
Efficient on site
Dual lever system fitted directly on valve bank. Transmission cut off switch allocating all the engine power to hydraulic performances. In addition, the forward/reverse selector is now integrated into the LPS, allowing the operator to keep the left hand on the steering wheel for greater safety.
Basic dimensions
Compactness and Manoeuvrability
Overall length up to carriage under 5 m and short rear overhang offer all the compactness and manoeuverability required in confined sites. Turning radius of 3.75 m for easy manoeuvering. Proportional and independant stabilizers lowering on a 2.21 m width. Ideal in restricted spaces with minimum damage to the surface.
