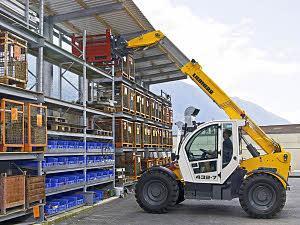

TL 432-7 Liebherr Telehandler Specs & Dimensions (2014 - 2017)

The Liebherr TL 432-7 is a telehandler manufactured from 2014 to 2017. It weighs 7.06 tons and has a transport length of 4.78 mete…

The Liebherr TL 432-7 is a telehandler manufactured from 2014 to 2017. It weighs 7.06 tons and has a transport length of 4.78 meters. The maximum reach horizontal is 4.1 meters, and it has a nominal load at the center of gravity of 3.2 tons. The lifting height is 6.93 meters, and it has a capacity of 1.1 tons at full forward reach. The center of gravity is located at 500 millimeters. It has a travel speed of 25 km/h and a capacity of 2.8 tons at full lift height. The transport width is 2.34 meters, and the transport height is 2.44 meters. Special equipment includes a diesel particulate filter.

Telehandlers Liebherr TL 432-7

Visit Liebherr live at

Technical specs - TL 432-7 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.2 t
Model series
TL
Centre of gravity
500 mm
Standard tyres
405/70-24
Transmission type
HY
Max. Reach horizontal
4.1 m
Capacity at full forward reach
1.1 t
Lifting height
6.93 m
Capacity at full lift height
2.8 t
Weight
7.06 t
Transport length
4.78 m
Transport width
2.34 m
Transport height
2.44 m
Travel speed
25 km/h
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
74.4 kW
Displacement
3.6 l
Revolutions at max torque
2000 rpm
Emission level
Tier 3 b

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke...

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, service brake - location, dimension configuration, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
Yes
StVZO Equipment
No
Inclination correction
No
Side displacement
No
