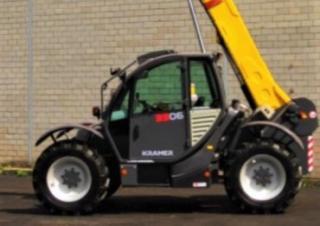

3306 Kramer Telehandler Specs & Dimensions (2005 - 2007)

The Kramer 3306 is a telehandler manufactured from 2005 to 2007. It weighs 7.2 tons and has a maximum horizontal reach of 3.09 met…

The Kramer 3306 is a telehandler manufactured from 2005 to 2007. It weighs 7.2 tons and has a maximum horizontal reach of 3.09 meters. The nominal load at the center of gravity is 3.3 tons, and it can lift up to a height of 6.25 meters. At full forward reach, it has a capacity of 1.5 tons, and at full lift height, it can handle loads up to 2.5 tons. The center of gravity is located at 500 millimeters.

Telehandlers Kramer 3306

Visit Kramer live at

Technical specs - 3306 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.3 t
Centre of gravity
500 mm
Standard tyres
405/70-24
Transmission type
HY
Max. Reach horizontal
3.09 m
Capacity at full forward reach
1.5 t
Lifting height
6.25 m
Capacity at full lift height
2.5 t
Weight
7.2 t
Engine manuf.
Deutz
Engine type
BF4M2012
Engine power
74.9 kW
Displacement
3.4 l
Emission level
Tier 4

More technical details, like: model series, transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load...

More technical details, like: model series, transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
