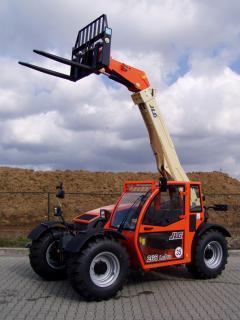

266 JLG Telehandler Specs & Dimensions (2005 - 2010)

Name: JLG 266 Telehandlers
Brand: JLG

The JLG 266 is a telehandler manufactured by JLG from 2005 to 2010. It weighs 6.3 tons and has a transport length of 4.4 meters. T…

The JLG 266 is a telehandler manufactured by JLG from 2005 to 2010. It weighs 6.3 tons and has a transport length of 4.4 meters. The telehandler has a nominal load capacity of 2.6 tons at the center of gravity and a lifting height of 5.8 meters. It can carry a capacity of 1 ton at full forward reach and 2.2 tons at full lift height. The machine has a transport width of 2.04 meters and a transport height of 2.18 meters.

266

Years of manufacture: 2005—2010

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 266 JLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2.6 t

Centre of gravity: 500 mm

Standard tyres: 405/70-24

Transmission type: Hy

Max. Reach horizontal: 3.61 m

Capacity at full forward reach: 1 t

Lifting height: 5.8 m

Capacity at full lift height: 2.2 t

Weight: 6.3 t

Transport length: 4.4 m

Transport width: 2.04 m

Transport height: 2.18 m

Engine manuf.: Deutz

Engine type: 2012

Engine power: 74.6 kW

More technical details, like: model series, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, turning radius - over tyres, breakout force, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
