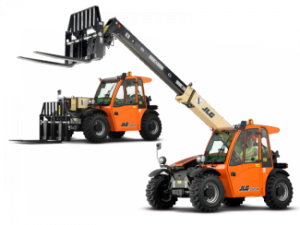

2505 H JLG Telehandler Specs & Dimensions (2013 - 2019)

Name: JLG 2505 H Telehandlers
Brand: JLG

The JLG 2505 H telehandler, manufactured from 2013 to 2019, has a weight of 5 tons and a transport length of 3.7 meters. It has a …

The JLG 2505 H telehandler, manufactured from 2013 to 2019, has a weight of 5 tons and a transport length of 3.7 meters. It has a nominal load at the center of gravity of 2.5 tons and a lifting height of 5.6 meters. The capacity at full forward reach is 0.8 tons and the center of gravity is at 500 millimeters. It has a travel speed of 25 km/h. The capacity at full lift height is 2 tons. The transport width is 1.8 meters and the transport height is 1.9 meters. It is equipped with StVZO equipment.

2505 H

Years of manufacture: 2013—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2505 H JLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 2.5 t

Model series: H

Centre of gravity: 500 mm

Standard tyres: 275/80-18

Max. Reach horizontal: 3.3 m

Capacity at full forward reach: 0.8 t

Lifting height: 5.6 m

Capacity at full lift height: 2 t

Weight: 5 t

Transport length: 3.7 m

Transport width: 1.8 m

Transport height: 1.9 m

Travel speed: 25 km/h

Engine manuf.: Deutz

Engine type: TD2.9 L4

Engine power: 54.4 kW

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, stabilisers, drive - 2w / 4w, transmission type, telematics available, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, tyre - front size, tyre 2 - front size option, tyre 3 - front size option, service brake - type, service brake - location, dimension configuration, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: Yes
Inclination correction: No
Side displacement: No
