    Lectura specs Forklifts Telehandlers Telehandlers JLG JLG 1075 specifications

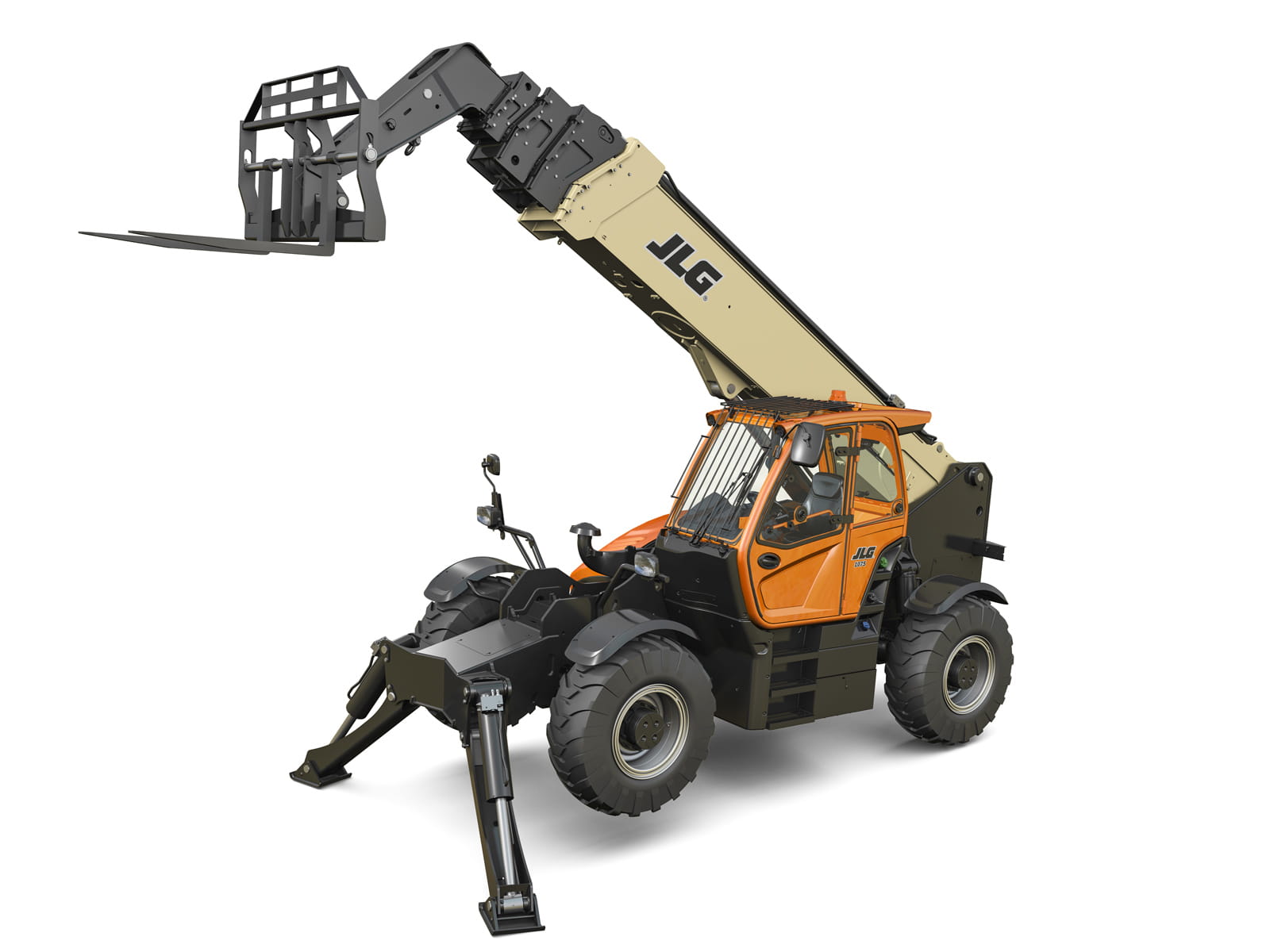

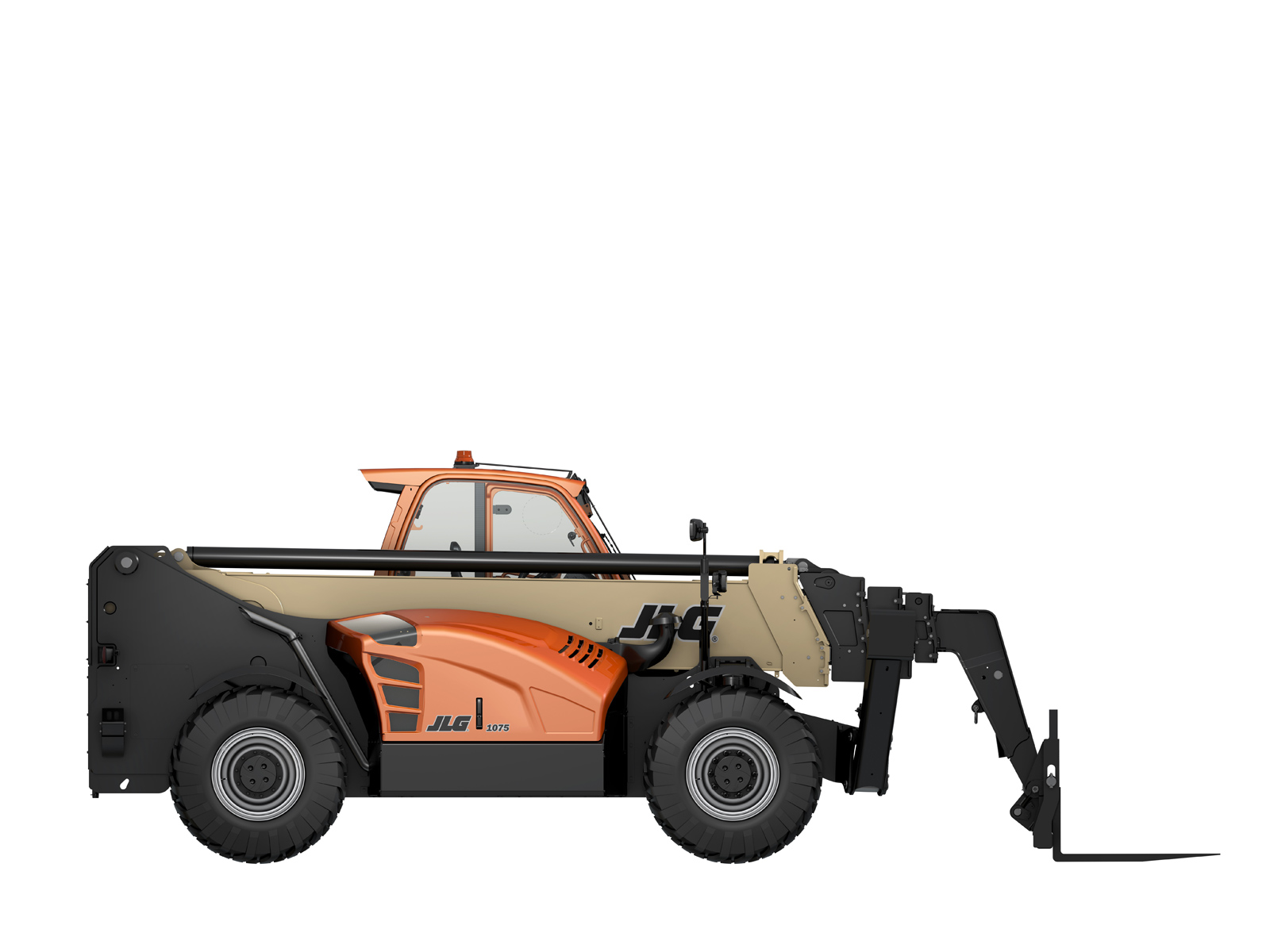

    JLG 1075 Specifications & Technical Data (2021-2021)

    Rate this machine now!

    Nominal load at COG: 4.53t – Standard tyres: 17.5-25 SGG – Capacity at full forward reach: 1.13t – Lifting height: 23m – Capacity at full lift hight: 2.7t – Weight: 10.27t

    Technical specs - 1075 JLG

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Nominal load at COG 4.53 t
    Standard tyres 17.5-25 SGG
    Capacity at full forward reach 1.13 t
    Lifting height 23 m
    Capacity at full lift hight 2.7 t
    Weight 10.27 t
    Transport length 7.34 m
    Transport width 2.49 m
    Transport height 3.05 m
    Travel speed 27.3 km/h
    Engine manuf. Cummins
    Engine type QSB4.5L
    Engine power 119 kW
    Engine power 160 HP
    Centre of gravity ###
    Transmission type ###
    Max. Reach horizontal ###
    max. climbing ability ###
    Dimension lxwxh ###
    Displacement ###
    Revolutions at max torque ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###
    Emission level ###

    All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

    1075 JLG - Special equipment

    • Diesel particulate filter
    • StVZO Equipment
    • Inclination correction
    • Side displacement
