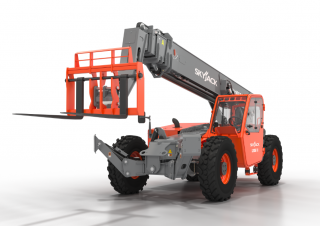

Skyjack SJ1056 TH telehandler specs (2016 - 2025)

The Skyjack SJ1056 TH is a telehandler manufactured since 2016. It has a weight of 14.288 tons and a transport length of 6.75 mete…

The Skyjack SJ1056 TH is a telehandler manufactured since 2016. It has a weight of 14.288 tons and a transport length of 6.75 meters. With a maximum horizontal reach of 12.95 meters, it can handle a nominal load of 4.535 tons at the center of gravity, and has a lifting height of 17.14 meters. At full forward reach, it can carry a capacity of 0.181 tons, and at full lift height, it can handle 1.814 tons. The telehandler has a center of gravity at 500 mm and a travel speed of 24 km/h. Its transport width is 2.56 meters and transport height is 2.47 meters.

Technical specs - SJ1056 TH Skyjack

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4.535 t
Model series
SJ
Centre of gravity
500 mm
Standard tyres
14x24 16 PR
Max. Reach horizontal
12.95 m
Capacity at full forward reach
0.181 t
Lifting height
17.14 m
Capacity at full lift height
1.814 t
Weight
14.288 t
Transport length
6.75 m
Transport width
2.56 m
Transport height
2.47 m
Travel speed
24 km/h
Engine manuf.
Deutz
Engine type
TCD3.6L
Engine power
55 kW
Emission level
Tier 4 f

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, dimension configuration, length - front of carriage, height - over cab, width - operating, ground clearance, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, lift capacity - fork maximum, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
