TLT35D JCB Telehandler Specs & Dimensions (2017 - 2020)

Name: JCB TLT35D Telehandlers
Brand: JCB

The JCB TLT35D is a telehandler manufactured by JCB from 2017 to 2020. It weighs 5.1 tons and has a maximum horizontal reach of 2.…

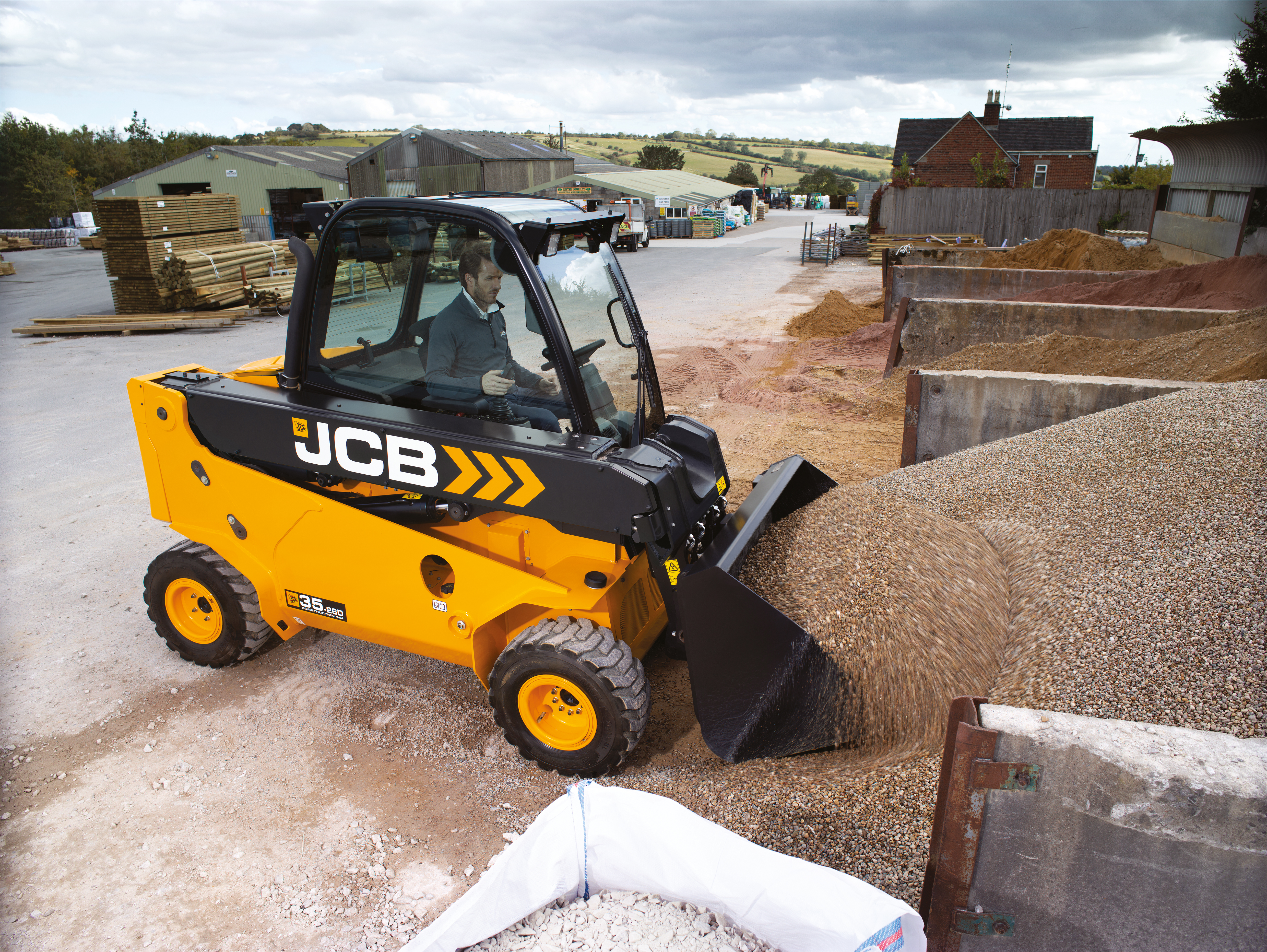

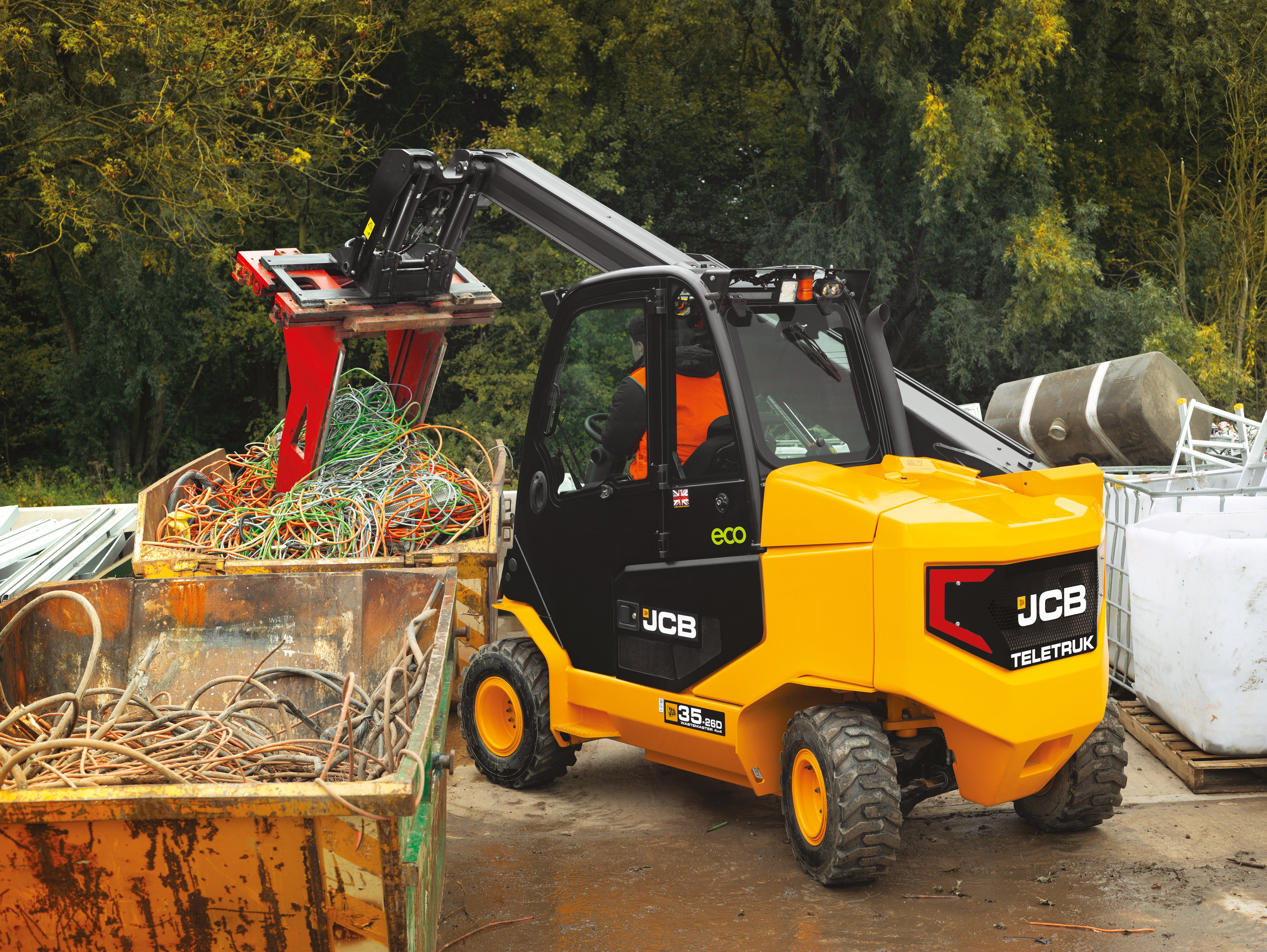

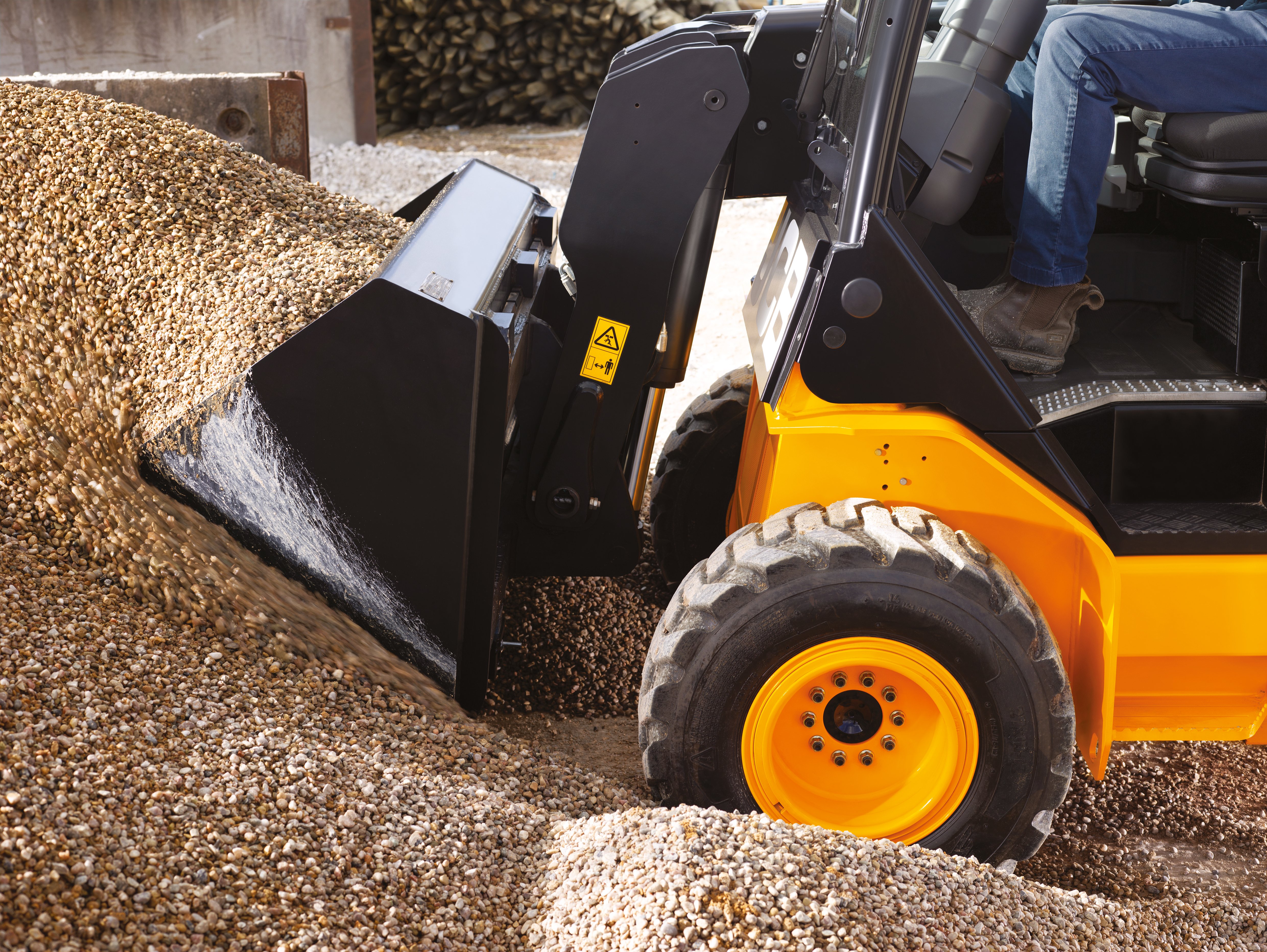

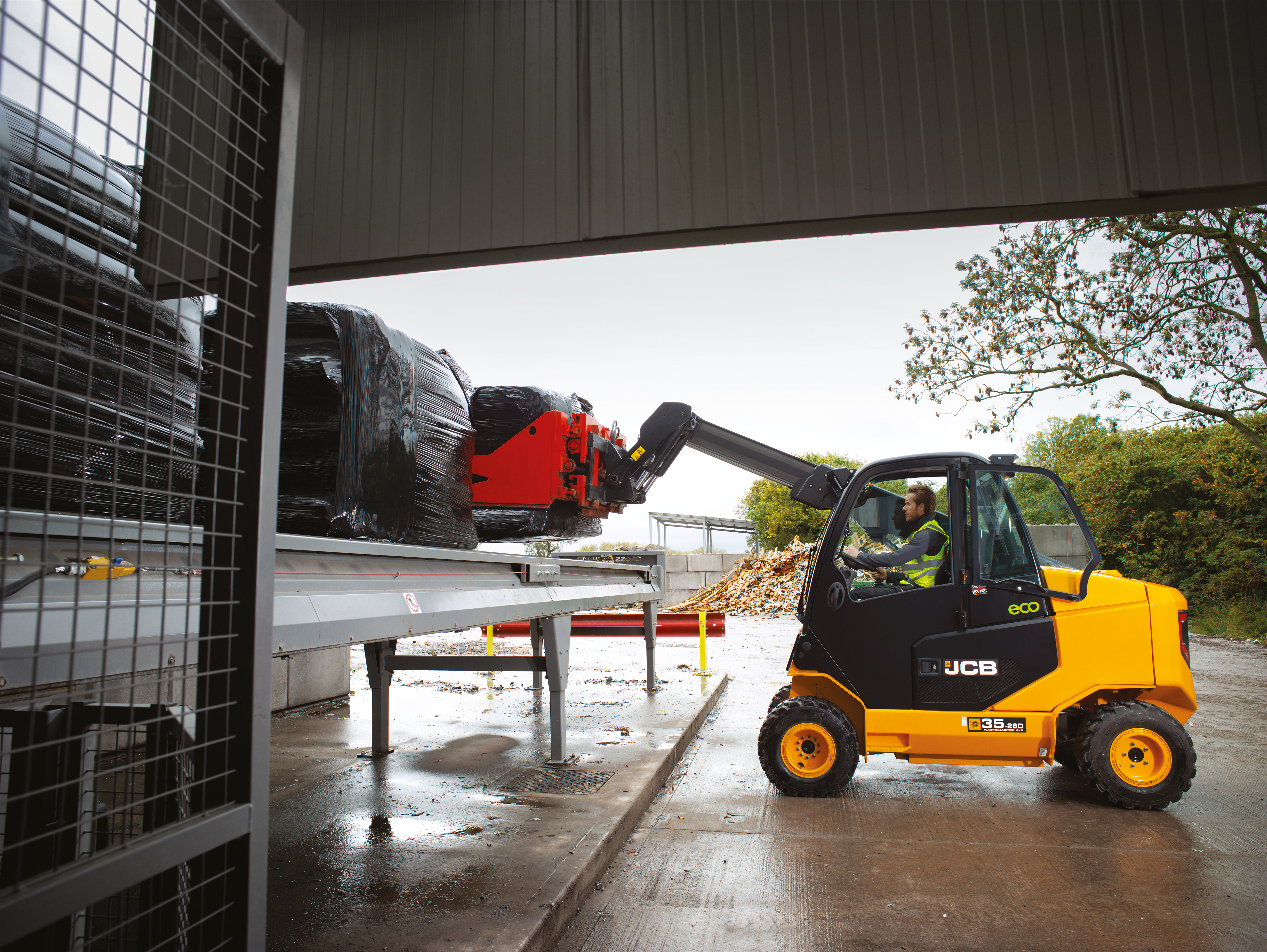

The JCB TLT35D is a telehandler manufactured by JCB from 2017 to 2020. It weighs 5.1 tons and has a maximum horizontal reach of 2.43 meters. The nominal load at the center of gravity is 3.5 tons, and it can lift up to a height of 4.4 meters. At full forward reach, it has a capacity of 1.7 tons, and at full lift height, it can handle 3 tons. The center of gravity is located at 500 mm. It has a maximum climbing ability of 25 percent and can travel at a speed of 20 km/h with or without a load.

TLT35D

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TLT35D JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3.5 t

Model series: TLT

Centre of gravity: 500 mm

Standard tyres: 2xSE/2SE

Transmission type: HY

Max. Reach horizontal: 2.43 m

Capacity at full forward reach: 1.7 t

Lifting height: 4.4 m

Capacity at full lift height: 3 t

Weight: 5.1 t

max. climbing ability: 25 %

Travel speed with / without load: 20 km/h

Engine manuf.: Kohler

Engine type: k.A.

Engine power: 46 kW

No. of cylinders: 4

Emission level: III B

More technical details, like: transport length, transport width, transport height, travel speed, drive system, voltage, traction motor, hoist motor, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
