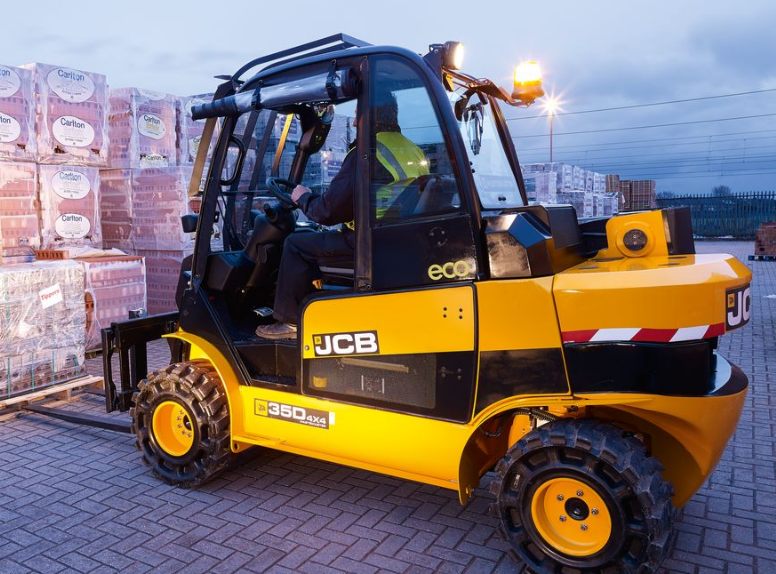

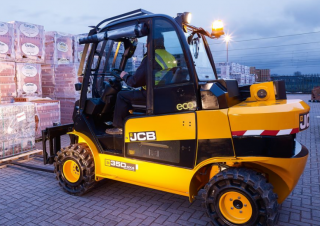

TLT30 JCB Telehandler Specs & Dimensions (2008 - 2017)

Name: JCB TLT30 Telehandlers
Brand: JCB

The JCB TLT30 is a telehandler manufactured by JCB from 2008 to 2017. It weighs 5.38 tons and has a maximum horizontal reach of 3.…

The JCB TLT30 is a telehandler manufactured by JCB from 2008 to 2017. It weighs 5.38 tons and has a maximum horizontal reach of 3.32 meters. The nominal load at the center of gravity is 3 tons, and it can lift up to a height of 5.15 meters. The capacity at full forward reach is 1.13 tons, and the center of gravity is located at 500 millimeters. It has a capacity of 3 tons at full lift height. The travel speed with or without load is 20 km/h.

TLT30

Years of manufacture: 2008—2017

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - TLT30 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 3 t

Model series: TLT

Centre of gravity: 500 mm

Standard tyres: SE/L

Transmission type: HY

Max. Reach horizontal: 3.32 m

Capacity at full forward reach: 1.13 t

Lifting height: 5.15 m

Capacity at full lift height: 3 t

Weight: 5.38 t

Travel speed with / without load: 20 km/h

Engine manuf.: Deutz

Engine type: 2011 L04W

Engine power: 45 kW

More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, engine output - gross, height - over cab, width - operating, ground clearance, lift height - maximum, reach - maximum, unstabilised lift height - with maximum capacity, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, number of boom sections, lift capacity - fork maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No

Download datasheets (PDF)
