540-70 JCB Telehandler Specs & Dimensions (2022 - 2026)

The JCB 540-70 is a telehandler manufactured by JCB since 2022. It has a weight of 8.1 tons and a transport length of 4.92 meters.…

The JCB 540-70 is a telehandler manufactured by JCB since 2022. It has a weight of 8.1 tons and a transport length of 4.92 meters. The maximum horizontal reach is 3.84 meters, and it can lift a nominal load of 4 tons at the center of gravity. The lifting height is 7.02 meters, and it has a capacity of 1.5 tons at full forward reach. The travel speed is 30 km/h, and it can handle a capacity of 2.5 tons at full lift height. The transport width is 2.4 meters, and the transport height is 2.64 meters.

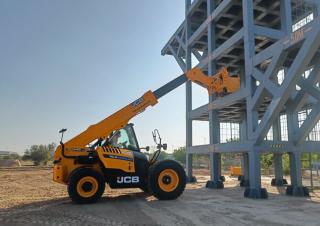

Telehandlers JCB 540-70
Telehandlers JCB 540-70
Telehandlers JCB 540-70
Telehandlers JCB 540-70

Visit JCB live at

Technical specs - 540-70 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
4 t
Model series
540
Max. Reach horizontal
3.84 m
Capacity at full forward reach
1.5 t
Lifting height
7.02 m
Capacity at full lift height
2.5 t
Weight
8.1 t
Transport length
4.92 m
Transport width
2.4 m
Transport height
2.64 m
Travel speed
30 km/h
Engine manuf.
JCB
Engine type
EcoMax 444
Engine power
55 kW
Displacement
4.4 l
Revolutions at max torque
1200 rpm
Max. torque
400 Nm
Emission level
CEV4

More technical details, like: centre of gravity, standard tyres, transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh...

More technical details, like: centre of gravity, standard tyres, transmission type, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No

Download datasheets (PDF)
