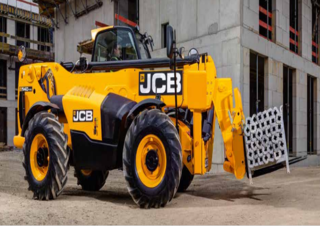

540-200 JCB Telehandler Specs & Dimensions (2017 - 2020)

Name: JCB 540-200 Telehandlers
Brand: JCB

The JCB 540-200 is a telehandler manufactured by JCB from 2017 to 2020. It has a weight of 12.985 tons and a transport length of 6…

The JCB 540-200 is a telehandler manufactured by JCB from 2017 to 2020. It has a weight of 12.985 tons and a transport length of 6.81 meters. With a maximum horizontal reach of 10.65 meters, it can handle a nominal load of 4 tons at the center of gravity, and has a lifting height of 20 meters. The telehandler has a capacity of 1 ton at full forward reach and 1.5 tons at full lift height. It has a transport width of 2.44 meters and a transport height of 1.72 meters. Equipped with inclination correction and StVZO equipment, it also has a travel speed of 20 km/h.

540-200

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 540-200 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 4 t

Model series: 540

Centre of gravity: 500 mm

Standard tyres: 440/80-24

Transmission type: W

Max. Reach horizontal: 10.65 m

Capacity at full forward reach: 1 t

Lifting height: 20 m

Capacity at full lift height: 1.5 t

Weight: 12.985 t

Transport length: 6.81 m

Transport width: 2.44 m

Transport height: 1.72 m

Travel speed: 20 km/h

Engine manuf.: JCB

Engine type: EcoMax

Engine power: 81 kW

Emission level: IV

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, dimension configuration, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, lift height - maximum, reach - maximum, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: Yes
Inclination correction: Yes
Side displacement: No
