537-120 JCB Telehandler Specs & Dimensions (1995 - 1997)

The JCB 537-120 is a telehandler manufactured by JCB from 1995 to 1997. It weighs 10.61 tons and has a nominal load at the center …

The JCB 537-120 is a telehandler manufactured by JCB from 1995 to 1997. It weighs 10.61 tons and has a nominal load at the center of gravity of 3.7 tons. With a lifting height of 12 meters, it has a capacity of 0.4 tons at full forward reach and 2 tons at full lift height. The center of gravity is located at 500mm.

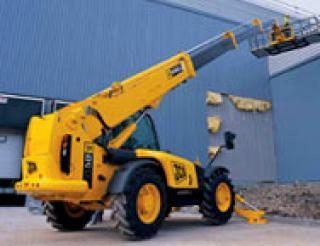

Telehandlers JCB 537-120

Visit JCB live at

Technical specs - 537-120 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG
3.7 t
Model series
537
Centre of gravity
500 mm
Standard tyres
15.5/80-25
Transmission type
W
Max. Reach horizontal
7.9 m
Capacity at full forward reach
0.4 t
Lifting height
12 m
Capacity at full lift height
2 t
Weight
10.61 t
Engine manuf.
Perkins
Engine type
1004
Engine power
79 kW

More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load...

More technical details, like: transport length, transport width, transport height, travel speed, max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, aspiration, rated speed, engine output - gross, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, width - stabiliser spread, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, unstabilised lift height - with maximum capacity, stabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, stabilised lift capacity - maximum, stabilised lift capacity - to max height, stabilised lift capacity - to max reach, fuel tank, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter
No
StVZO Equipment
No
Inclination correction
No
Side displacement
No
